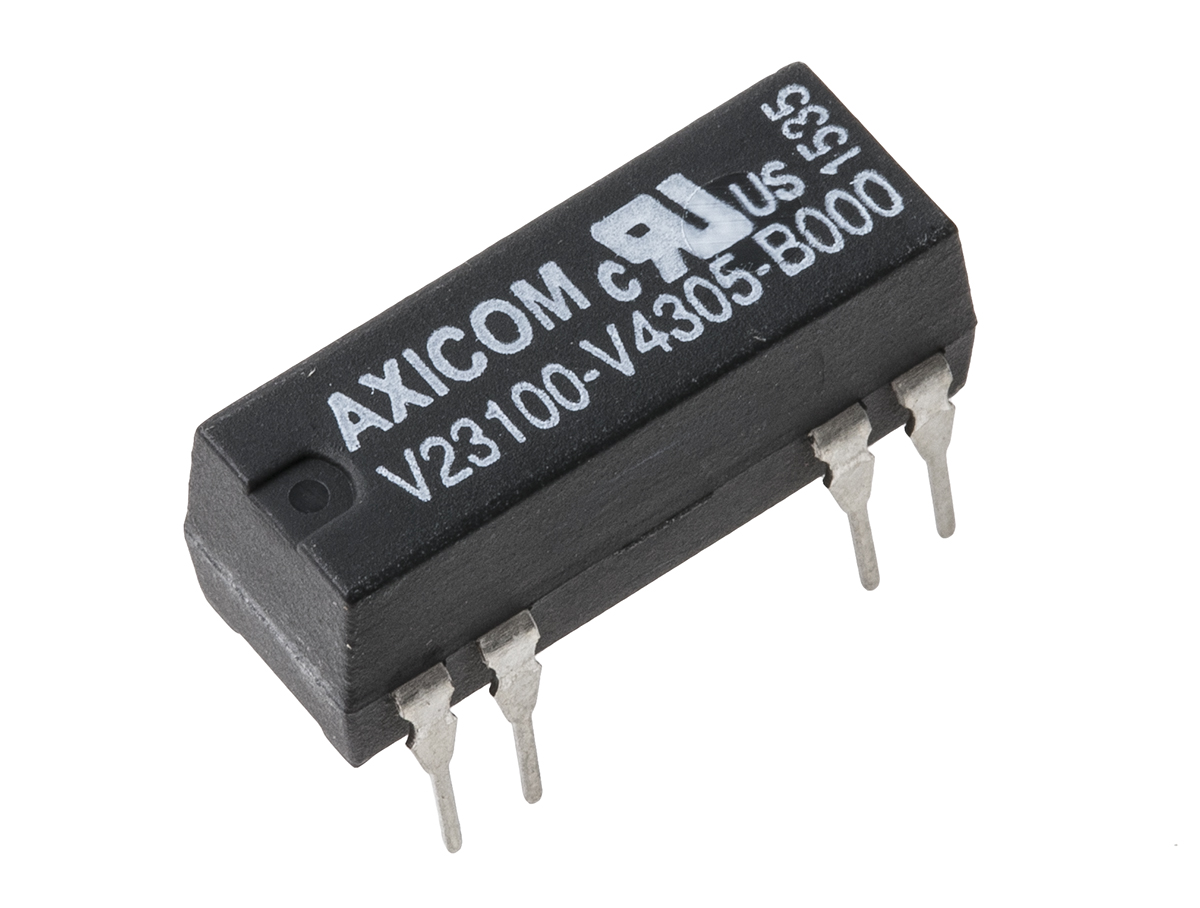

This is DPNO Reed Relay 5V dc manufactured by TE Connectivity. The manufacturer part number is V23100V4305B. It features a 150 mω contact resistance. The given dimensions of the product include 19.3 x 7 x 7.5mm. The coil voltage of the product is 5v dc. It holds up to 500ω coil resistance. Robust coil power of 50mw. While it carries 200v dc of maximum DC switching voltage. It bears a maximum 10 w of DC switching power. The product has 1.5kv rms isolation coil to contact. It has a maximum operating temperature of +85°c. The terminal is a through hole type. It has a maximum 1 a switching current AC . The product has -40 → +85°c of operating temperature range. The contact is equipped with dpst configuration. Its accurate length is 19.3mm. The product is available in pcb mount configuration. Moreover, the product offers a 0.75ms operating time including bounce . The product comes in 7mm depth. In addition, the height is 7.5mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 200v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 10va. The product is made from sturdy ruthenium materials.
For more information please check the datasheets.
