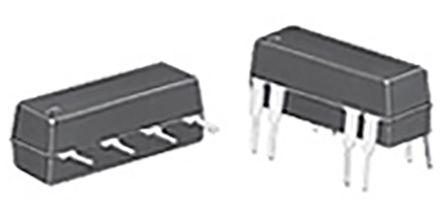

This is SPNO Reed Relay 500 mA 12V dc manufactured by TE Connectivity. The manufacturer part number is JWD-172-7. It features a 200 mω contact resistance. The given dimensions of the product include 19.56 x 7.62 x 8mm. The coil voltage of the product is 12v dc. It holds up to 1.2 kω coil resistance. It is capable of doing 100000000 (mechanical) operations in a lifetime . Robust coil power of 120mw. While it carries 100v dc of maximum DC switching voltage. It bears a maximum 10 w of DC switching power. The product has 500v dc isolation coil to contact. It has a maximum operating temperature of +85°c. The terminal is a pcb pin type. The product has -35 → +85°c of operating temperature range. The contact is equipped with spno configuration. The product comes in 7.62mm depth. The product is available in pcb mount configuration. Moreover, the product offers a 1.5/0.5ms operating time including bounce . Its accurate length is 19.56mm. In addition, the height is 8mm. It has a minimum 0.5 a DC switching current . Whereas, the minimum operating temperature of the product is -35°c. The product is made from sturdy ruthenium materials.
For more information please check the datasheets.
