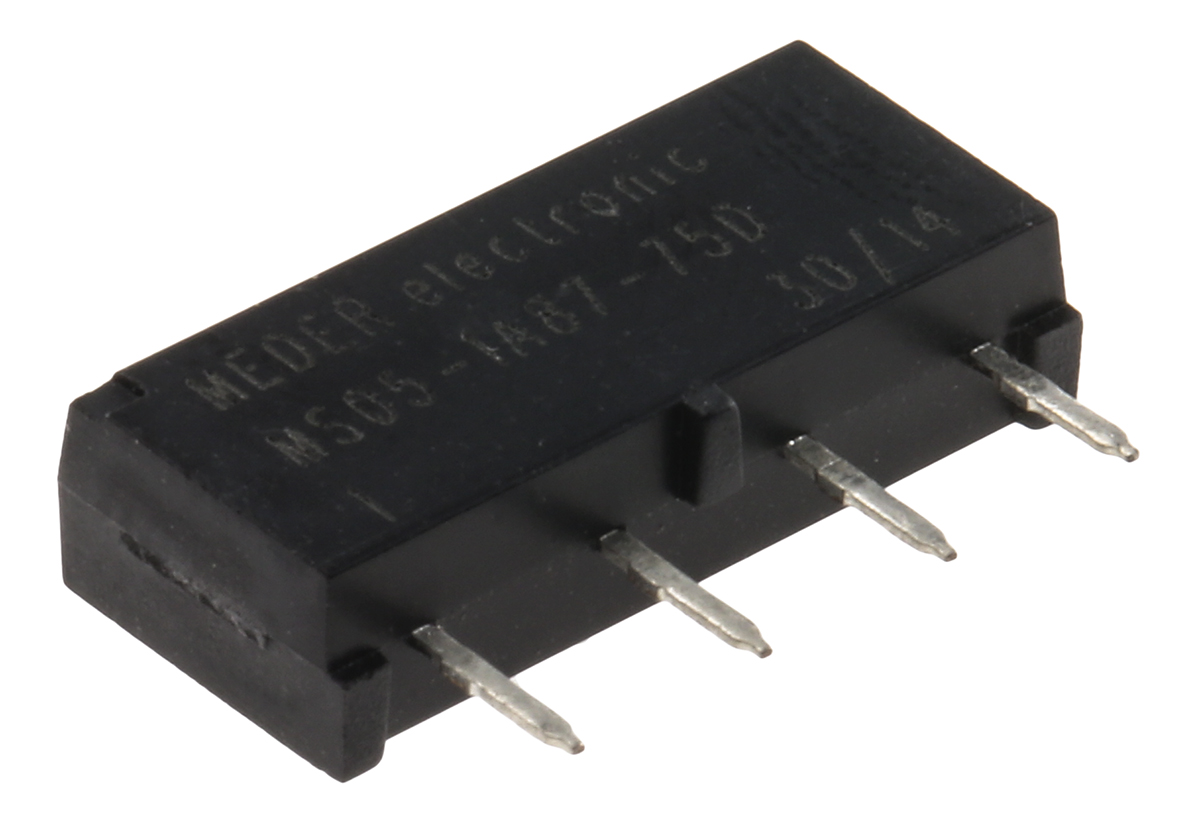

This is SPNO Reed Relay 0.5 A 5V dc manufactured by Meder. The manufacturer part number is MS05-1A87-75D. It features a 150 mω contact resistance. The given dimensions of the product include 15.2 x 3.81 x 6.8mm. The coil voltage of the product is 5v dc. It holds up to 280ω coil resistance. It is capable of doing 1 (electrical) cycles in a lifetime . Robust coil power of 90mw. While it carries 200v dc of maximum DC switching voltage. It bears a maximum 10 w of DC switching power. The product has 1.5kv dc isolation coil to contact. It has a maximum operating temperature of +70°c. The terminal is a through hole type. The product has -20 → +65°c of operating temperature range. The contact is equipped with spst configuration. The product comes in 3.81mm depth. The product is available in pcb mount configuration. Moreover, the product offers a 0.5ms operating time including bounce . Its accurate length is 15.2mm. In addition, the height is 6.8mm. It has a minimum 0.4 a DC switching current . It has a maximum AC switching voltage of 200v ac. Whereas, the minimum operating temperature of the product is -20°c. It has equipped with 1 poles.
For more information please check the datasheets.
