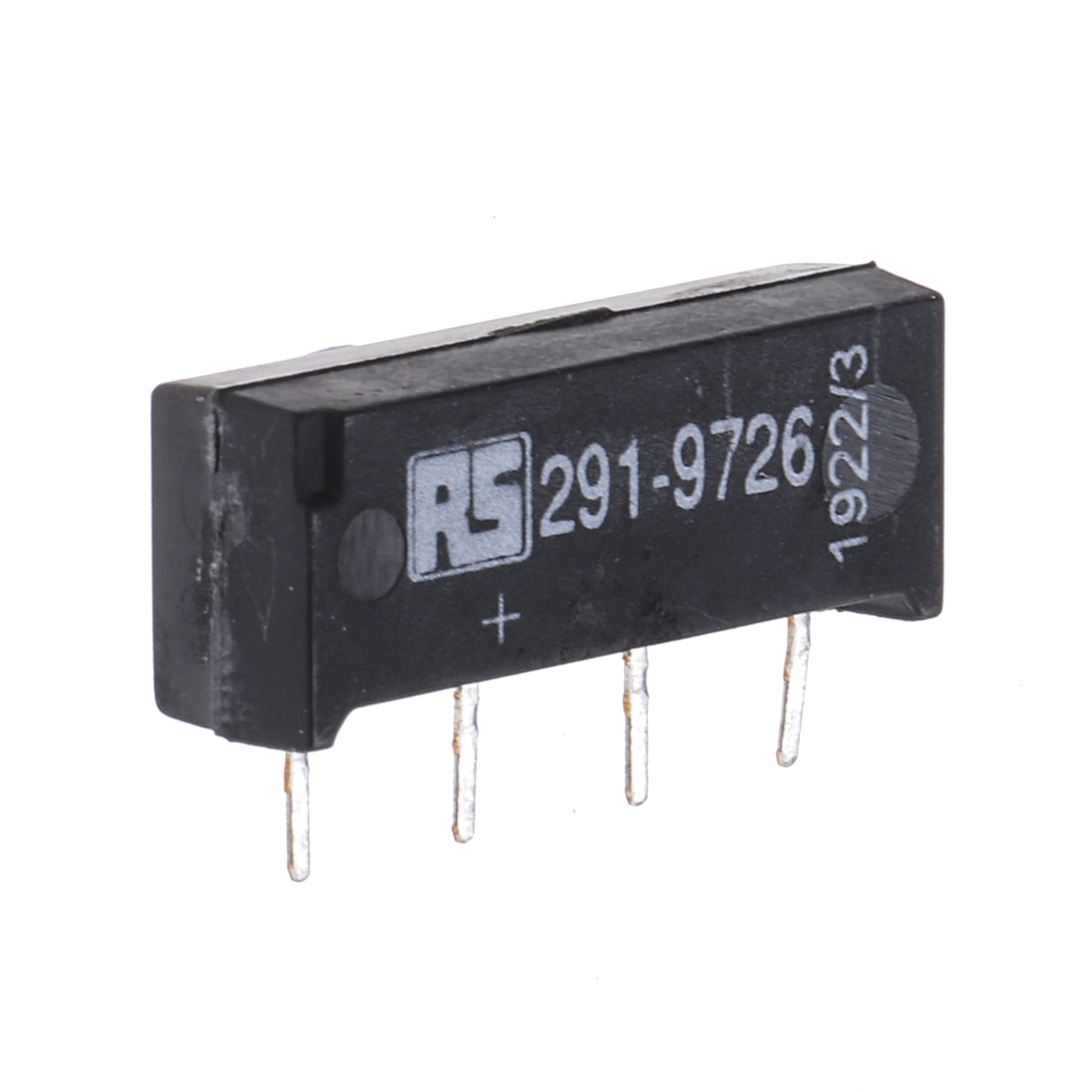

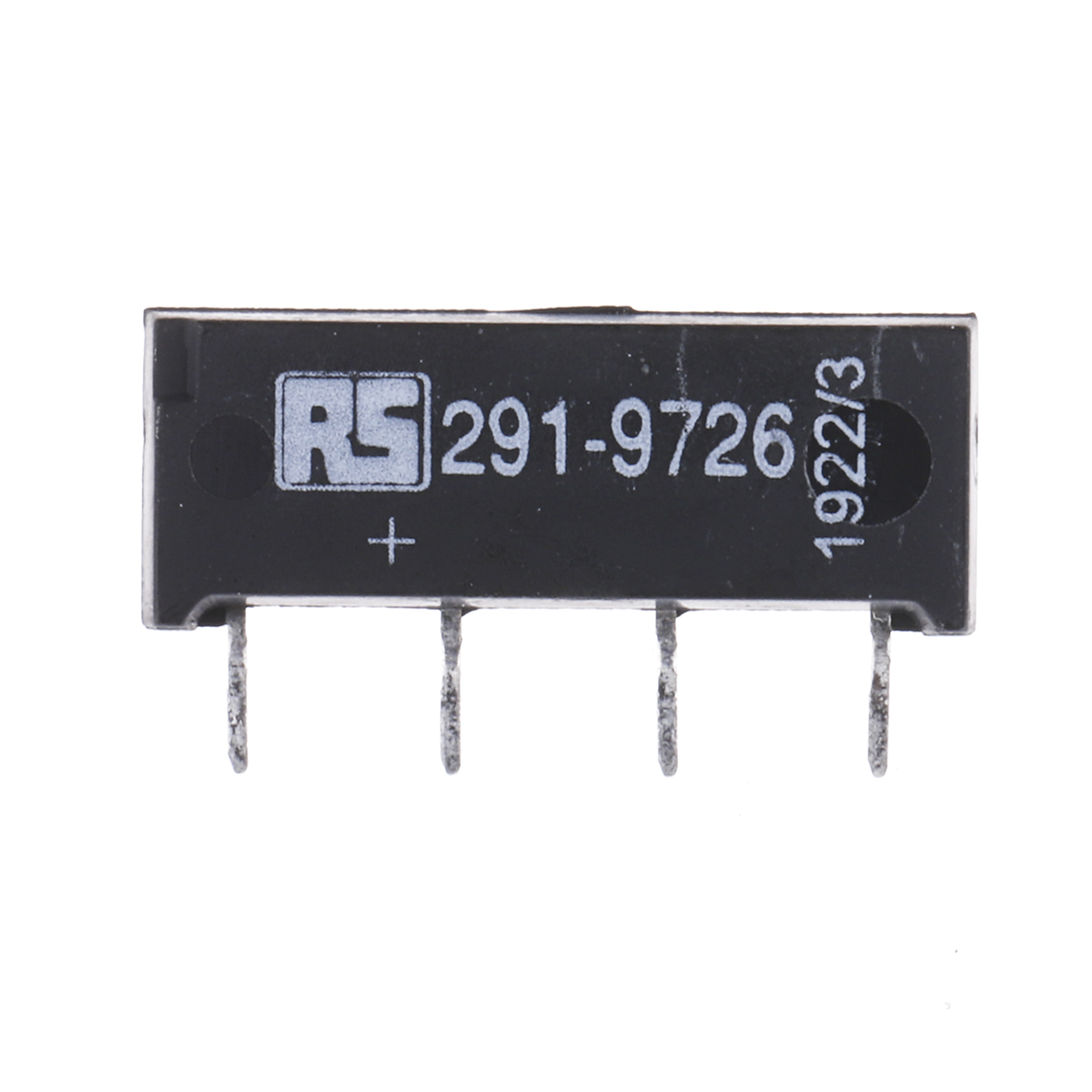

SPNO Reed Relay, 1 A, 24V dc

SIL24-1A72-BV726 SPNO Reed Relay, 1 A, 24V dc
SIL24-1A72-BV726
SIL24-1A72-BV726
Meder

Product Information

Contact Resistance:
150 (Static) mΩ, 200 (Dynamic) mΩ
Dimensions:
19.8 x 5.08 x 7.8mm
Coil Voltage:
24V dc
Coil Resistance:
2000Ω
Life:
5000000 (Electrical) cycles
Coil Power:
288mW
Maximum Switching Voltage DC:
200V dc
Maximum Switching Power DC:
20 W
Isolation Coil To Contact:
1.5kV dc
Maximum Operating Temperature:
+70°C
Terminal Type:
Through Hole
Maximum Switching Current AC:
1 A
Operating Temperature Range:
-20 → +70°C
Contact Configuration:
SPST
Depth:
5.08mm
Mounting Type:
PCB Mount
Operating Time Including Bounce:
0.5ms
Length:
19.8mm
Height:
7.8mm
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
200V ac
Minimum Operating Temperature:
-20°C
Contact Material:
Rhodium
RoHs Compliant
Checking for live stock

This is SPNO Reed Relay 1 A 24V dc manufactured by Meder. The manufacturer part number is SIL24-1A72-BV726. It features a 150 (static) mω, 200 (dynamic) mω contact resistance. The given dimensions of the product include 19.8 x 5.08 x 7.8mm. The coil voltage of the product is 24v dc. It holds up to 2000ω coil resistance. It is capable of doing 5000000 (electrical) cycles in a lifetime . Robust coil power of 288mw. While it carries 200v dc of maximum DC switching voltage. It bears a maximum 20 w of DC switching power. The product has 1.5kv dc isolation coil to contact. It has a maximum operating temperature of +70°c. The terminal is a through hole type. It has a maximum 1 a switching current AC . The product has -20 → +70°c of operating temperature range. The contact is equipped with spst configuration. The product comes in 5.08mm depth. The product is available in pcb mount configuration. Moreover, the product offers a 0.5ms operating time including bounce . Its accurate length is 19.8mm. In addition, the height is 7.8mm. It has a minimum 1 a DC switching current . It has a maximum AC switching voltage of 200v ac. Whereas, the minimum operating temperature of the product is -20°c. The product is made from sturdy rhodium materials.

pdf icon
Reed Relais Serie SIL(Technical Reference)
pdf icon
Reed Relay SIL 24vDC SPNO Data Sheet(Technical Reference)
