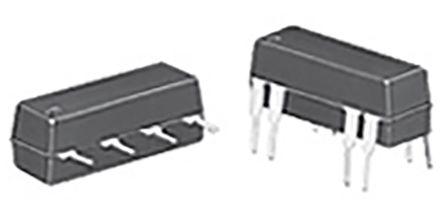

DPDT Reed Relay, 500 mA, 12V dc

JWD-171-23 DPDT Reed Relay, 500 mA, 12V dc
TE Connectivity

Product Information

Contact Resistance:
200 mΩ
Dimensions:
19.56 x 7.62 x 8mm
Coil Voltage:
12V dc
Coil Resistance:
500 Ω
Life:
100000000 (Mechanical) operations
Coil Power:
288mW
Maximum Switching Voltage DC:
100V dc
Maximum Switching Power DC:
10 W
Isolation Coil To Contact:
500V dc
Maximum Operating Temperature:
+85°C
Terminal Type:
PCB Pin
Operating Temperature Range:
-35 → +85°C
Contact Configuration:
DPDT
Depth:
7.62mm
Mounting Type:
PCB Mount
Operating Time Including Bounce:
1.5/0.5ms
Length:
19.56mm
Height:
8mm
Maximum Switching Current DC:
0.5 A
Minimum Operating Temperature:
-35°C
Contact Material:
Ruthenium
RoHs Compliant
Checking for live stock

This is DPDT Reed Relay 500 mA 12V dc manufactured by TE Connectivity. The manufacturer part number is JWD-171-23. It features a 200 mω contact resistance. The given dimensions of the product include 19.56 x 7.62 x 8mm. The coil voltage of the product is 12v dc. It holds up to 500 ω coil resistance. It is capable of doing 100000000 (mechanical) operations in a lifetime . Robust coil power of 288mw. While it carries 100v dc of maximum DC switching voltage. It bears a maximum 10 w of DC switching power. The product has 500v dc isolation coil to contact. It has a maximum operating temperature of +85°c. The terminal is a pcb pin type. The product has -35 → +85°c of operating temperature range. The contact is equipped with dpdt configuration. The product comes in 7.62mm depth. The product is available in pcb mount configuration. Moreover, the product offers a 1.5/0.5ms operating time including bounce . Its accurate length is 19.56mm. In addition, the height is 8mm. It has a minimum 0.5 a DC switching current . Whereas, the minimum operating temperature of the product is -35°c. The product is made from sturdy ruthenium materials.
