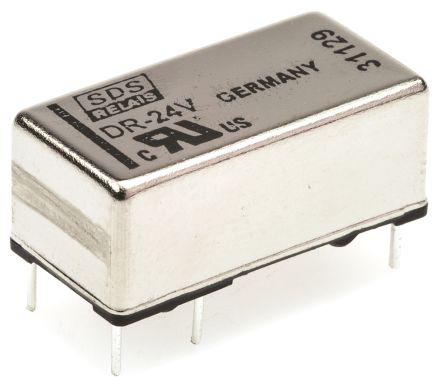

SPDT Reed Relay, 0.3 A @ V ac, 1 A @ V dc, 24V dc

Enrgtech Part No: ET13862077
|
Manufacturer Part No:
DR-SDS-24
|
Manufacturer: Panasonic

DR-SDS-24 SPDT Reed Relay, 0.3 A @ V ac, 1 A @ V dc, 24V dc

Product Information

Maximum Switching Voltage DC:

30V dc

Maximum Operating Temperature:

+85°C

Dimensions:

20 x 10 x 8.5mm

Mounting Type:

PCB Mount

Operating Temperature Range:

-50 → +85°C

Minimum Operating Temperature:

-50°C

Maximum Switching Current AC:

0.3 A

Coil Voltage:

24V dc

Length:

20mm

Height:

8.5mm

Maximum Switching Current DC:

1 A

Depth:

10mm

Checking for live stock

This is SPDT Reed Relay 0.3 A @ V ac 1 A @ V dc 24V dc manufactured by Panasonic. The manufacturer part number is DR-SDS-24. While it carries 30v dc of maximum DC switching voltage. It has a maximum operating temperature of +85°c. The given dimensions of the product include 20 x 10 x 8.5mm. The product is available in pcb mount configuration. The product has -50 → +85°c of operating temperature range. Whereas, the minimum operating temperature of the product is -50°c. It has a maximum 0.3 a switching current AC . The coil voltage of the product is 24v dc. Its accurate length is 20mm. In addition, the height is 8.5mm. It has a minimum 1 a DC switching current . The product comes in 10mm depth. It has a maximum AC switching voltage of 110v ac. It bears a maximum 20 w of DC switching power. The contact is equipped with spdt configuration. It also features an AC switching power of 33 va. The product is made from sturdy gold plated materials. It has equipped with 5 poles. The terminal is a pcb pin type. It holds up to 4.37 kω coil resistance.

DR-Series Highly Reliable Miniature DIP-Relays(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search DR-SDS-24 on website for other similar products.

We accept all major payment methods for all products including ET13862077. Please check your shopping cart at the time of order.

You can order Panasonic brand products with DR-SDS-24 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Reed Relays category are shipped in lowest possible time.

You will get a confirmation email regarding your order of SPDT Reed Relay, 0.3 A @ V ac, 1 A @ V dc, 24V dc. You can also check on our website or by contacting our customer support team for further order details on SPDT Reed Relay, 0.3 A @ V ac, 1 A @ V dc, 24V dc.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET13862077 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13862077.

Yes. We ship DR-SDS-24 Internationally to many countries around the world.
