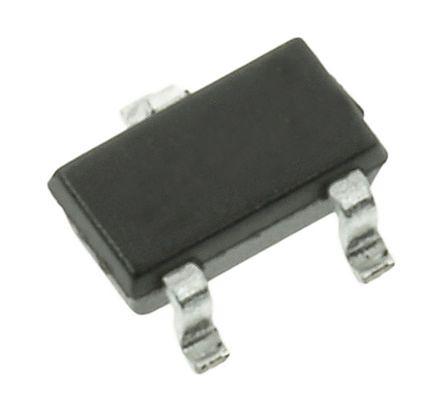

Panasonic DB3X313N0L Dual SMT Schottky Diode, Common Cathode, 30V 220mA, 3-Pin SOT-346

Enrgtech Part No: ET14052683
|
Manufacturer Part No:
DB3X313N0L
|
Manufacturer: Panasonic

DB3X313N0L Panasonic Dual SMT Schottky Diode, Common Cathode, 30V 220mA, 3-Pin SOT-346

Product Information

Mounting Type:

Surface Mount

Peak Reverse Recovery Time:

1.5ns

Peak Non-Repetitive Forward Surge Current:

700mA

Maximum Forward Voltage Drop:

550mV

Maximum Continuous Forward Current:

220mA

Diode Technology:

Schottky

Package Type:

SOT-346 (SC-59)

Number of Elements per Chip:

Diode Type:

Schottky

Diode Configuration:

Common Cathode

Pin Count:

Peak Reverse Repetitive Voltage:

30V

Checking for live stock

This is Dual SMT Schottky Diode Common Cathode 30V 220mA 3-Pin SOT-346 manufactured by Panasonic. The manufacturer part number is DB3X313N0L. The product is available in surface mount configuration. Moreover, it has a peak reverse recovery time about 1.5ns . Moreover, a bespoke product has 700ma peak non-repetitive forward surge current. It features 550mv of maximum forward voltage drop. Furthermore, its maximum continuous forward current constitutes 220ma. The product utilizes schottky diode technology. The package is a sort of sot-346 (sc-59). It consists of 2 elements per chip. It is designed with a schottky diode. The diode features a common cathode configuration. It contains 3 pins. While having the peak reverse repetitive 30v.
