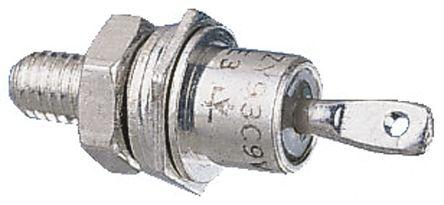

Vishay VS-71HF60 Thread Mount Diode, Stud Cathode, 600V 70A, 2-Pin DO-203AB

Enrgtech Part No: ET13977795
|
Manufacturer Part No:
VS-71HF60
|
Manufacturer: Vishay

VS-71HF60 Vishay Thread Mount Diode, Stud Cathode, 600V 70A, 2-Pin DO-203AB

Product Information

Mounting Type:

Thread Mount

Maximum Continuous Forward Current:

70A

Peak Non-Repetitive Forward Surge Current:

1.1kA

Maximum Forward Voltage Drop:

1.35V

Diode Technology:

Silicon Junction

Package Type:

DO-203AB

Number of Elements per Chip:

Diode Type:

Silicon Junction

Diode Configuration:

Stud Cathode

Pin Count:

Peak Reverse Repetitive Voltage:

600V

Checking for live stock

This is Thread Mount Diode Stud Cathode 600V 70A 2-Pin DO-203AB manufactured by Vishay. The manufacturer part number is VS-71HF60. The product is available in thread mount configuration. Furthermore, its maximum continuous forward current constitutes 70a. Moreover, a bespoke product has 1.1ka peak non-repetitive forward surge current. It features 1.35v of maximum forward voltage drop. The product utilizes silicon junction diode technology. The package is a sort of do-203ab. It consists of 1 elements per chip. It is designed with a silicon junction diode. The diode features a stud cathode configuration. It contains 2 pins. While having the peak reverse repetitive 600v.
