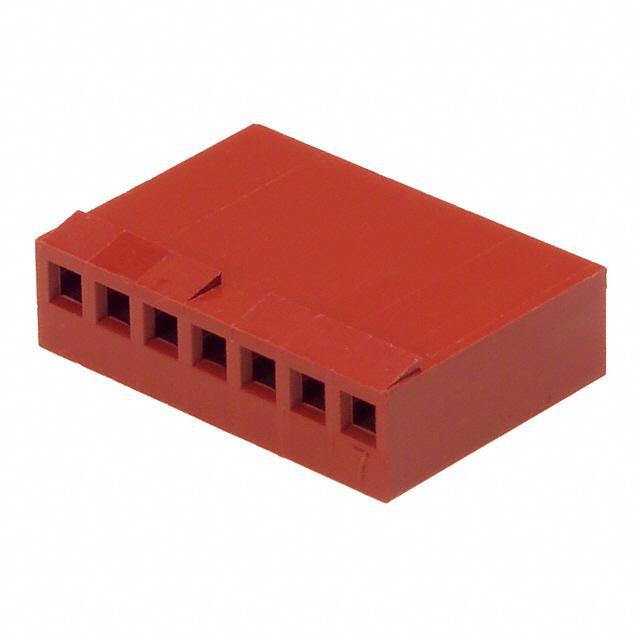

Molex Connector Housing KK 254 2695, 2.54mm Pitch Female, 1 Row, 7 Way

Enrgtech Part No: ET16777861
|
Manufacturer Part No:
22-01-2077
|
Manufacturer: Molex

22-01-2077 Molex Connector Housing KK 254 2695, 2.54mm Pitch Female, 1 Row, 7 Way

Product Information

Series:

KK 254

Mounting Type:

Cable Mount

Gender:

Female

Body Orientation:

Straight

Length:

18.34mm

Housing Material:

Nylon

Width:

4.82mm

Depth:

12.7mm

Number of Rows:

Pitch:

2.54mm

For Use With:

KK Connector

Number of Contacts:

Checking for live stock

This is Connector Housing KK 254 2695 2.54mm Pitch Female 1 Row 7 Way manufactured by Molex. The manufacturer part number is 22-01-2077. The product kk 254, is a highly preferred choice for users. The product is available in cable mount configuration. In addition, female is the available "Gender" of the product. It has straight body orientation. Its accurate length is 18.34mm. The product also features robust nylon housing material. Furthermore, the product is 4.82mm wide. The product comes in 12.7mm depth. It comes in 1 of rows. Moreover, the product is 2.54mm. The product is highly suitable for kk connector. The product contains 7 contacts. It has 3d cad model CAD drawing . It carries [Serial Number] serial number. It is assigned with possible HTSUS value of 8538.90.7080. It is shipped in bag package . The product is rohs non-compliant. In addition, it is reach info available upon request. Its typical moisture sensitivity level is vendor undefined. The product is designated with the ear99 code number.

Datasheet(Technical Reference)

Crimp housing 2.54mm KK 2695 Series Drawing(Technical Reference)

Line Drawing(Technical Reference)

Engineering Note for the Molex KK Range of Series 2695 Housings and associated Contacts(Technical Reference)

Datasheet(Datasheets)
