Würth Elektronik 61201622821

61201622821 Würth Elektronik
Würth Elektronik

Product Information

Manufacturer Standard Lead Time:
20 Weeks
Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Detailed Description:

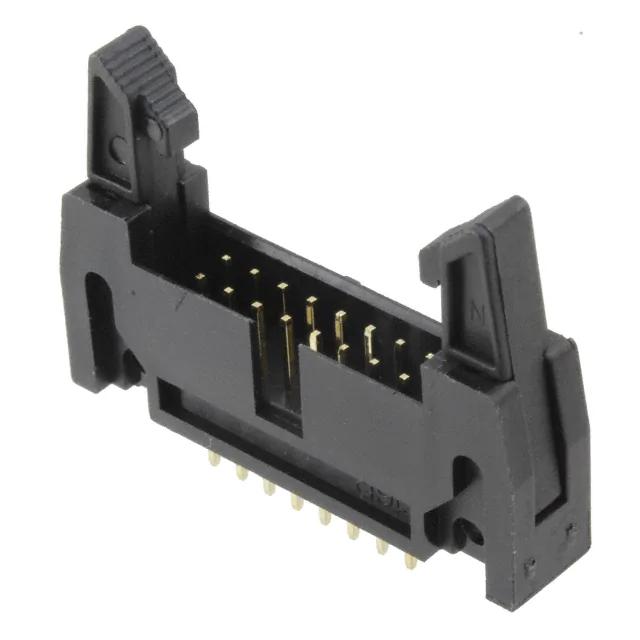

Connector Header Through Hole 16 position 0.100" (2.54mm)
Operating Temperature:
-40°C ~ 125°C
Number of Positions:
16
Contact Length - Post:
0.134" (3.40mm)
Insulation Height:
0.669" (17.00mm)
Insulation Color:
Black
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
Würth Elektronik
Voltage Rating:
250V
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.224" (5.70mm)
Fastening Type:
Latch Lock/Eject Hooks, Long
Termination:
Solder
Current Rating (Amps):
3A
Pitch - Mating:
0.100" (2.54mm)
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
WR-BHD
Packaging:
Tray
Customer Reference:
Contact Type:
Male Pin
Number of Positions Loaded:
All
Insulation Material:
Polybutylene Terephthalate (PBT)
Contact Material:
Copper Alloy
Checking for live stock

This is manufactured by Würth Elektronik. The manufacturer part number is 61201622821. It has typical 20 weeks of manufacturer standard lead time. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It features connector header through hole 16 position 0.100" (2.54mm). The product has -40°c ~ 125°c operating temperature range. The product carries possible position value of 16. 0.134" (3.40mm) is the given possible contact length (post) values. 0.669" (17.00mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The würth elektronik's product offers user-desired applications. Moreover, the product has a nominal 250v voltage rating. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.224" (5.70mm) contact mated. Furthermore, latch lock/eject hooks, long is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 3a. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole configuration. The product wr-bhd, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has typical contact type of male pin. However, all is the Number of Positions Loaded. It has a robust polybutylene terephthalate (pbt) insulation material. The product is made from sturdy copper alloy materials.

pdf icon
RoHS Cert(Environmental Information)
pdf icon
6120yy22y21 Logo Marking 23/Jul/2020(PCN Design/Specification)
pdf icon
6120xx22821 Drawing(Datasheets)
pdf icon
61201622821.pdf(3D Drawings)

Reviews

  • Be the first to review.

We are pleased to offer you the Würth Elektronik 61201622821 from the brand Würth Elektronik, and we specialize in import-export by providing online intermediary services for almost 16 years of successful journey. Enrgtech’s online firm provides a platform for customers to purchase Rectangular Connectors - Headers, Male Pins of their desired needs. We have dedicatedly removed the geographical limits, and customers can get standard Würth Elektronik 61201622821 from leading manufacturers Würth Elektronik at any time and location. The Rectangular Connectors - Headers, Male Pins’s Würth Elektronik 61201622821 is a type of header which contains connector pins in a plastic base and is intended to mate with a rectangular cable connector or socket header for a board-to-board connection.

These products Würth Elektronik 61201622821 are available in various position and pitch options, with some having a breakaway option to change the position count with ease manually. In addition, some Würth Elektronik 61201622821 with 61201622821 provided are encased or unshrouded with 1 to 4 walls and mounting styles including panel mount, board edge, stacking, surface mount, and through-hole. Potential customers can get their product Würth Elektronik 61201622821 quickly through unique Enrgtech Product Number ET18812215 by filtering the results for their respective Rectangular Connectors - Headers, Male Pins type on our website. We deliver the Würth Elektronik 61201622821 in the lowest possible time with handsome saving offers in the UK and internationally.

Let us know further details regarding your Würth Elektronik 61201622821 or any other products by emailing our customer support team at sales@enrgtech.co.uk or calling at +44 (0) 3303 800 157.


FAQs

Yes. You can also search 61201622821 on website for other similar products.
We accept all major payment methods for all products including ET18812215. Please check your shopping cart at the time of order.
You can order Würth Elektronik brand products with 61201622821 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Rectangular Connectors - Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Würth Elektronik 61201622821. You can also check on our website or by contacting our customer support team for further order details on Würth Elektronik 61201622821.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18812215 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Würth Elektronik" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18812215.
Yes. We ship 61201622821 Internationally to many countries around the world.
