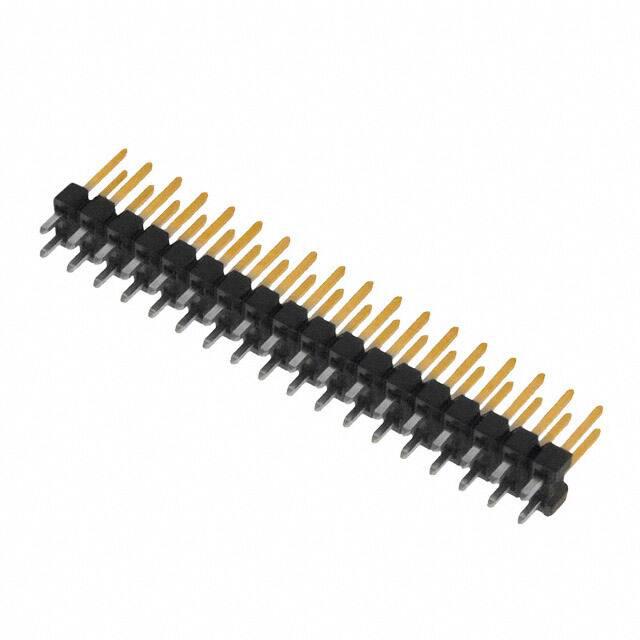

Molex, LLC 10-89-1361

10-89-1361 Molex, LLC
Molex, LLC

Product Information

Style:
Board to Board or Cable
Detailed Description:
Connector Header Through Hole 36 position 0.100" (2.54mm)
Contact Finish Thickness - Post:
74.8µin (1.90µm)
Number of Positions:
36
Contact Length - Post:
0.107" (2.71mm)
Overall Contact Length:
0.437" (11.10mm)
Insulation Height:
0.090" (2.29mm)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Shrouding:
Unshrouded
Applications:
Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
Molex, LLC
Insulation Color:
Black
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Fastening Type:
Push-Pull
Termination:
Solder
Pitch - Mating:
0.100" (2.54mm)
Mounting Type:
Through Hole
Series:
C-Grid 8624
Packaging:
Bulk
Contact Finish - Mating:
Gold
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Insulation Material:
Polyester, Glass Filled
Contact Material:
Phosphor Bronze
Checking for live stock

This is manufactured by Molex, LLC. The manufacturer part number is 10-89-1361. Additionally, the product is designed with board to board or cable Style. It features connector header through hole 36 position 0.100" (2.54mm). Additionally, it features 74.8µin (1.90µm) of post thickness. The product carries possible position value of 36. 0.107" (2.71mm) is the given possible contact length (post) values. The product has a 0.437" (11.10mm) of overall contact lentgh. 0.090" (2.29mm) of insulation height. However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, a bespoke product features unshrouded. The product is widely employed in automotive, general purpose, lighting, medical, telecommunications. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The molex, llc's product offers user-desired applications. In addition, black is the insulation color of the product. It carries 0.100" (2.54mm) of row spacing. header, breakaway Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product c-grid 8624, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has nice contact finishing of gold. It has typical contact type of male pin. It has possible tin contact post finishing. It has a robust polyester, glass filled insulation material. The product is made from sturdy phosphor bronze materials.
