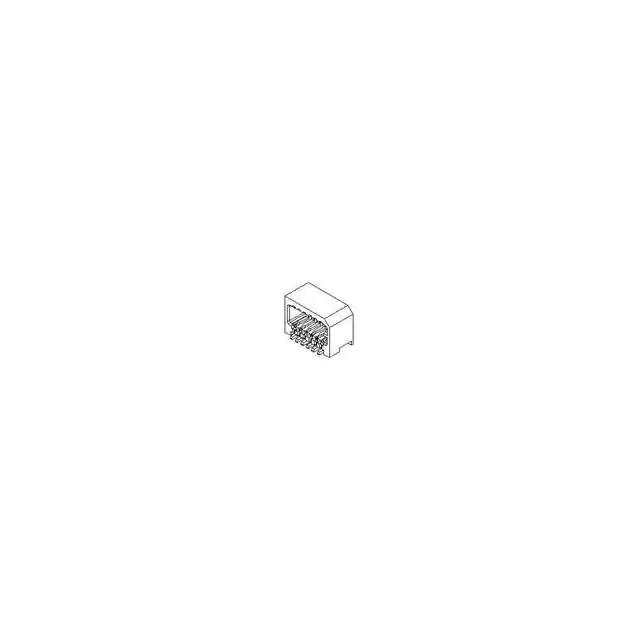

Molex 53309, 0.8mm Pitch, 14 Way, 2 Row, Right Angle PCB Header, Surface Mount

53309-1470 Molex 53309, 0.8mm Pitch, 14 Way, 2 Row, Right Angle PCB Header, Surface Mount
53309-1470
Molex

Product Information

Shrouded/Unshrouded:
Shrouded
Current Rating:
500.0mA
Mounting Type:
Surface Mount
Body Orientation:
Right Angle
Termination Method:
Solder
Connector System:
Board to Board
Number of Rows:
2
Pitch:
0.8mm
Number of Contacts:
14
Contact Material:
Phosphor Bronze
HTSUS:
8536.69.4040
Package:
Tape & Reel (TR)
Series:
*
RoHS Status:
RoHS non-compliant
REACH Status:
REACH info available upon request
Moisture Sensitivity Level (MSL):
Vendor Undefined
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is 53309 0.8mm Pitch 14 Way 2 Row Right Angle PCB Header Surface Mount manufactured by Molex. The manufacturer part number is 53309-1470. It is supplied as shrouded. The product has a current rating of 500.0ma. The product is available in surface mount configuration. It has right angle body orientation. It allows solder termination method. It allows board to board connector system. It comes in 2 of rows. Moreover, the product is 0.8mm. The product contains 14 contacts. The product is made from sturdy phosphor bronze materials. It is assigned with possible HTSUS value of 8536.69.4040. It is shipped in tape & reel (tr) package . The product is rohs non-compliant. In addition, it is reach info available upon request. Its typical moisture sensitivity level is vendor undefined. The product is designated with the ear99 code number.

pdf icon
Data Sheet(Technical Reference)
pdf icon
Line Drawing(Technical Reference)
pdf icon
Datasheet(Datasheets)
