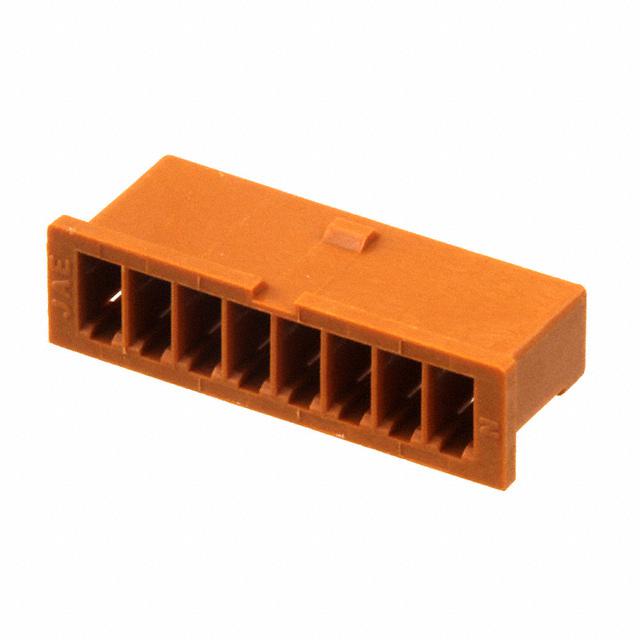

JAE Electronics IL-Z-8S-S125C3

IL-Z-8S-S125C3 JAE Electronics
JAE Electronics

Product Information

HTSUS:
8536.69.4040
Note:
Contacts Not Included
Operating Temperature:
-40°C ~ 70°C
Number of Positions:
8
Number of Rows:
1
Package:
Bulk
Connector Type:
Receptacle
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Female Socket
Fastening Type:
Friction Lock
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
-
Series:
IL-Z
Insulation Material:
Polyamide (PA66), Nylon 6/6, Glass Filled
Pitch:
0.049" (1.25mm)
Row Spacing:
-
Contact Termination:
Crimp
Base Product Number:
IL-Z-8
ECCN:
EAR99
Checking for live stock

This is manufactured by JAE Electronics. The manufacturer part number is IL-Z-8S-S125C3. It is assigned with possible HTSUS value of 8536.69.4040. Note: contacts not included. The product has -40°c ~ 70°c operating temperature range. The product carries possible position value of 8. It comes in 1 of rows. It is shipped in bulk package . receptacle Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of female socket. Furthermore, friction lock is the Fastening Type of the product. The product is available in free hanging (in-line) configuration. The product il-z, is a highly preferred choice for users. It has a robust polyamide (pa66), nylon 6/6, glass filled insulation material. Moreover, the product is 0.049" (1.25mm). It also incorporates crimp contact terminals. Moreover, it corresponds to il-z-8, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
IL-STD,G,Y,Z Series 01/Nov/2013(PCN Obsolescence/ EOL)
pdf icon
Board-to-Cable Connectors(Datasheets)
pdf icon
IL-Z-xxS-S125C3 Drawing(Product Drawings)
