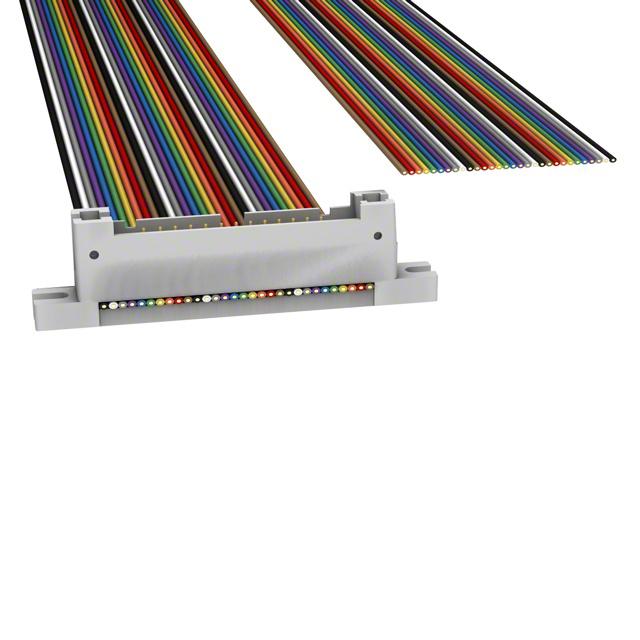

Assmann WSW Components H1WXH-3036M

H1WXH-3036M Assmann WSW Components
H1WXH-3036M
Assmann WSW Components

Product Information

HTSUS:
8544.42.9090
RoHS Status:
ROHS3 Compliant
Usage:
-
Contact Finish Thickness:
15.0µin (0.38µm)
Number of Positions:
30
Shielding:
Unshielded
REACH Status:
REACH info available upon request
Number of Rows:
2
Pitch - Connector:
0.100" (2.54mm)
Pitch - Cable:
0.050" (1.27mm)
Package:
Bulk
Cable Termination:
IDC
Connector Type:
Plug to Cable
Contact Finish:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
3.00' (914.40mm)
Features:
Flange, Polarizing Key
Color:
Multiple, Ribbon
Series:
-
Base Product Number:
H1WXH-30
ECCN:
EAR99
Checking for live stock

This is manufactured by Assmann WSW Components. The manufacturer part number is H1WXH-3036M. It is assigned with possible HTSUS value of 8544.42.9090. The product is rohs3 compliant. It has 15.0µin (0.38µm) of contact finishing thickness. The product carries possible position value of 30. Furthermore, the product is shielded with unshielded. In addition, it is reach info available upon request. It comes in 2 of rows. The connector's pitch include 0.100" (2.54mm). The product is available with a 0.050" (1.27mm) of cable pitch. It is shipped in bulk package . It features idc cable terminals. plug to cable Connector type offer robust functionality. Furthermore, the product is galvanized with excellent gold contact finishing. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 3.00' (914.40mm). The splendid features of the product include flange, polarizing key. It has a classic multiple, ribbon colour. Moreover, it corresponds to h1wxh-30, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Ribbon Cable Assembly Length Guide(Datasheets)
pdf icon
AWH xxG-E2x2-IDC Drawing(Product Drawings)
pdf icon
AWG28-xx/F/300 Drawing(Product Drawings)
pdf icon
Assmann RoHS Cert(Environmental Information)
