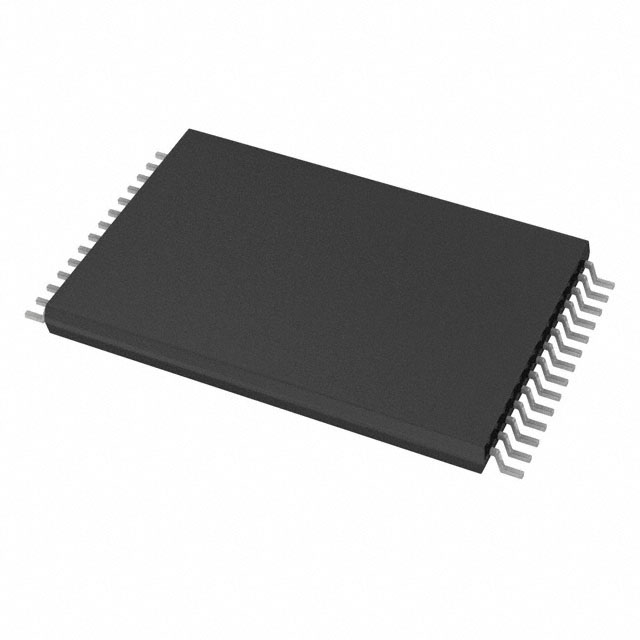

Analog Devices Inc./Maxim Integrated DS1501YEN

DS1501YEN Analog Devices Inc./Maxim Integrated
Analog Devices Inc./Maxim Integrated

Product Information

HTSUS:
8542.39.0001
RoHS Status:
RoHS non-compliant
Current - Timekeeping (Max):
5mA @ 4.5V ~ 5.5V
DigiKey Programmable:
Not Verified
Operating Temperature:
-40°C ~ 85°C
Memory Size:
256B
Package / Case:
28-TSSOP (0.465", 11.80mm Width)
Type:
Clock/Calendar
REACH Status:
REACH Unaffected
Date Format:
YY-MM-DD-dd
Time Format:
HH:MM:SS (24 hr)
Interface:
Parallel
Manufacturer:
Analog Devices Inc./Maxim Integrated
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Voltage - Supply, Battery:
2.5V ~ 3.7V
Features:
Alarm, Leap Year, NVSRAM, Square Wave Output, Watchdog Timer, Y2K
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
28-TSOP
Packaging:
Bag
Voltage - Supply:
4.5V ~ 5.5V
Base Product Number:
DS1501
ECCN:
EAR99
Checking for live stock

This is manufactured by Analog Devices Inc./Maxim Integrated. The manufacturer part number is DS1501YEN. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs non-compliant. The maximum timekeeping current is 5ma @ 4.5v ~ 5.5v. The product has -40°c ~ 85°c operating temperature range. It holds a typical memory size of 256b. Moreover, the product comes in 28-tssop (0.465", 11.80mm width). It comes in clock/calendar configuration. In addition, it is reach unaffected. Date Format Info: yy-mm-dd-dd. Assigned with a time format of hh:mm:ss (24 hr) . A bespoke product is parallel interface. The analog devices inc./maxim integrated's product offers user-desired applications. Its typical moisture sensitivity level is 3 (168 hours). The battery provides up to 2.5v ~ 3.7v supply voltage. The splendid features of the product include alarm, leap year, nvsram, square wave output, watchdog timer, y2k. The product is available in surface mount configuration. 28-tsop is the supplier device package value. In addition, bag is the available packaging type of the product. It has optimum voltage supply of 4.5v ~ 5.5v. Moreover, it corresponds to ds1501, a base product number of the product. The product is designated with the ear99 code number.
