Functions:
Calendar, NV RAM, Trickle Charger
User RAM:
31B
Mounting Type:
Surface Mount
Minimum Operating Temperature:
0 °C
Minimum Operating Supply Voltage:
2 V
Date Format:
DW:DM:M:Y
Height:
1.5mm
Width:
4mm
Length:
5mm

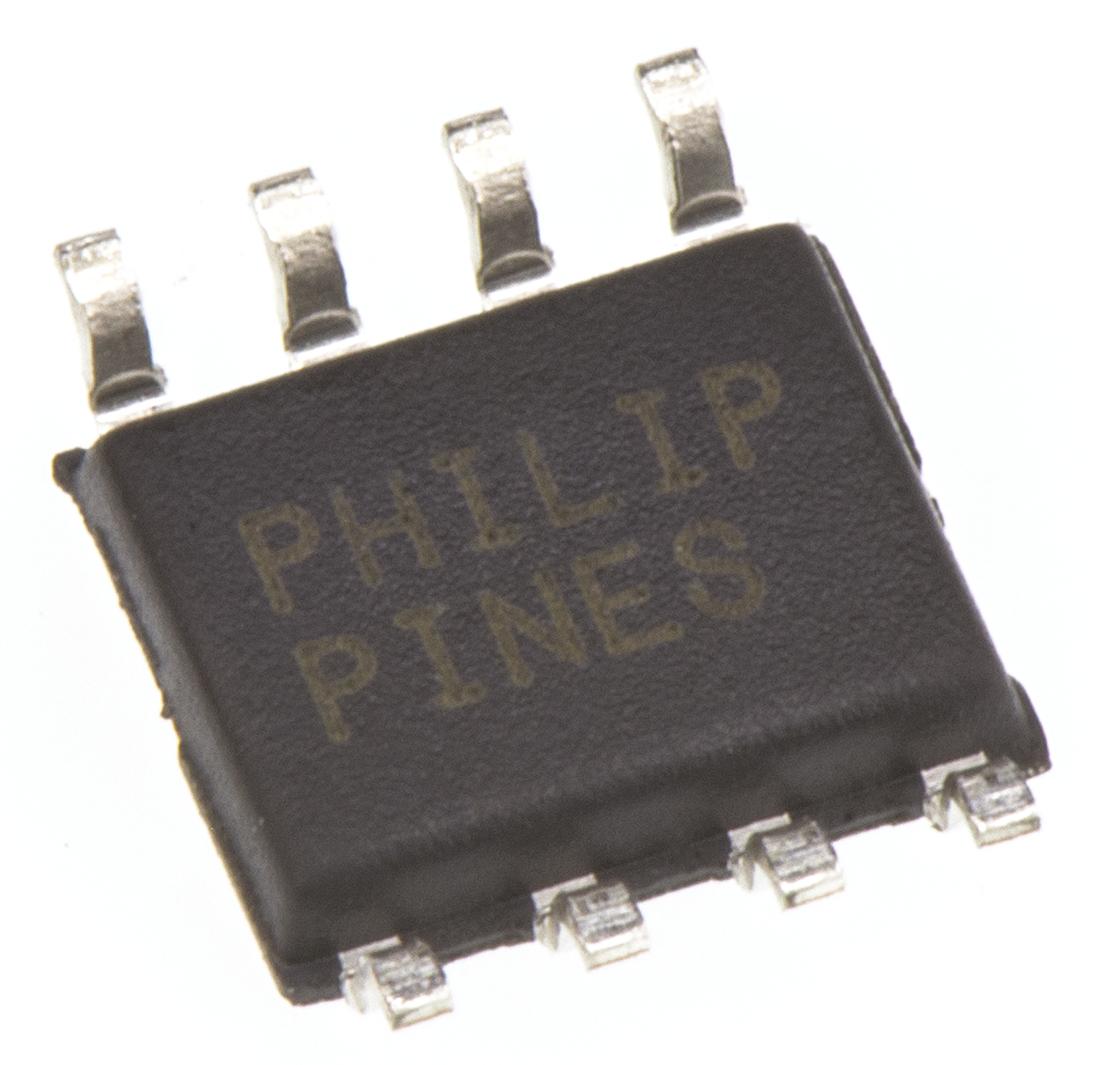

Package Type:
SOIC
Bus Type:
Serial
Time Format:
HH:MM:SS
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+70 °C
Pin Count:
8
Dimensions:
5 x 4 x 1.5mm
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Timekeeping (Max):
0.3µA ~ 1µA @ 2V ~ 5V
Operating Temperature:
0°C ~ 70°C
Memory Size:
31B
Package / Case:
8-SOIC (0.154", 3.90mm Width)
Type:
Clock/Calendar
REACH Status:
REACH Unaffected
Date Format:
YY-MM-DD-dd
Time Format:
HH:MM:SS (12/24 hr)
Interface:
3-Wire Serial
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - Supply, Battery:
2V ~ 5.5V
standardLeadTime:
52 Weeks
Features:
Leap Year, NVSRAM, Trickle-Charger
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
8-SOIC
Voltage - Supply:
2V ~ 5.5V
Base Product Number:
DS1302
ECCN:
EAR99
