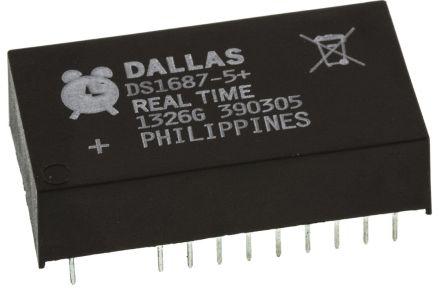

Maxim DS1687-5+, Real Time Clock (RTC), 242B RAM Multiplexed, 24-Pin EDIP

DS1687-5- Maxim DS1687-5+, Real Time Clock (RTC), 242B RAM Multiplexed, 24-Pin EDIP
DS1687-5+
Maxim

Product Information

Functions:
Alarm, Battery Backup, Calendar
User RAM:
242B
Mounting Type:
Through Hole
Minimum Operating Temperature:
0 °C
Minimum Operating Supply Voltage:
4.5 V
Date Format:
Binary, DW:DM:M:Y
Height:
9.4mm
Width:
18.8mm
Length:
34.04mm
Package Type:
EDIP
Bus Type:
Multiplexed
Time Format:
Binary, HH:MM:SS
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+70 °C
Pin Count:
24
Dimensions:
34.04 x 18.8 x 9.4mm
RoHs Compliant
Checking for live stock

This is Real Time Clock (RTC) 242B RAM Multiplexed 24-Pin EDIP manufactured by Maxim. The manufacturer part number is DS1687-5+. Included functions alarm, battery backup, calendar . It has about 242b user RAM . The product is available in through hole configuration. Whereas, the minimum operating temperature of the product is 0 °c. While its minimum operating supply voltage is 4.5 v. Date Format Info: binary, dw:dm:m:y. In addition, the height is 9.4mm. Furthermore, the product is 18.8mm wide. Its accurate length is 34.04mm. The package is a sort of edip. It includes a multiplexed type bus . Assigned with a time format of binary, hh:mm:ss . It has 5.5 v maximum operating supply voltage. It has a maximum operating temperature of +70 °c. It contains 24 pins. The given dimensions of the product include 34.04 x 18.8 x 9.4mm.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4(Technical Reference)
