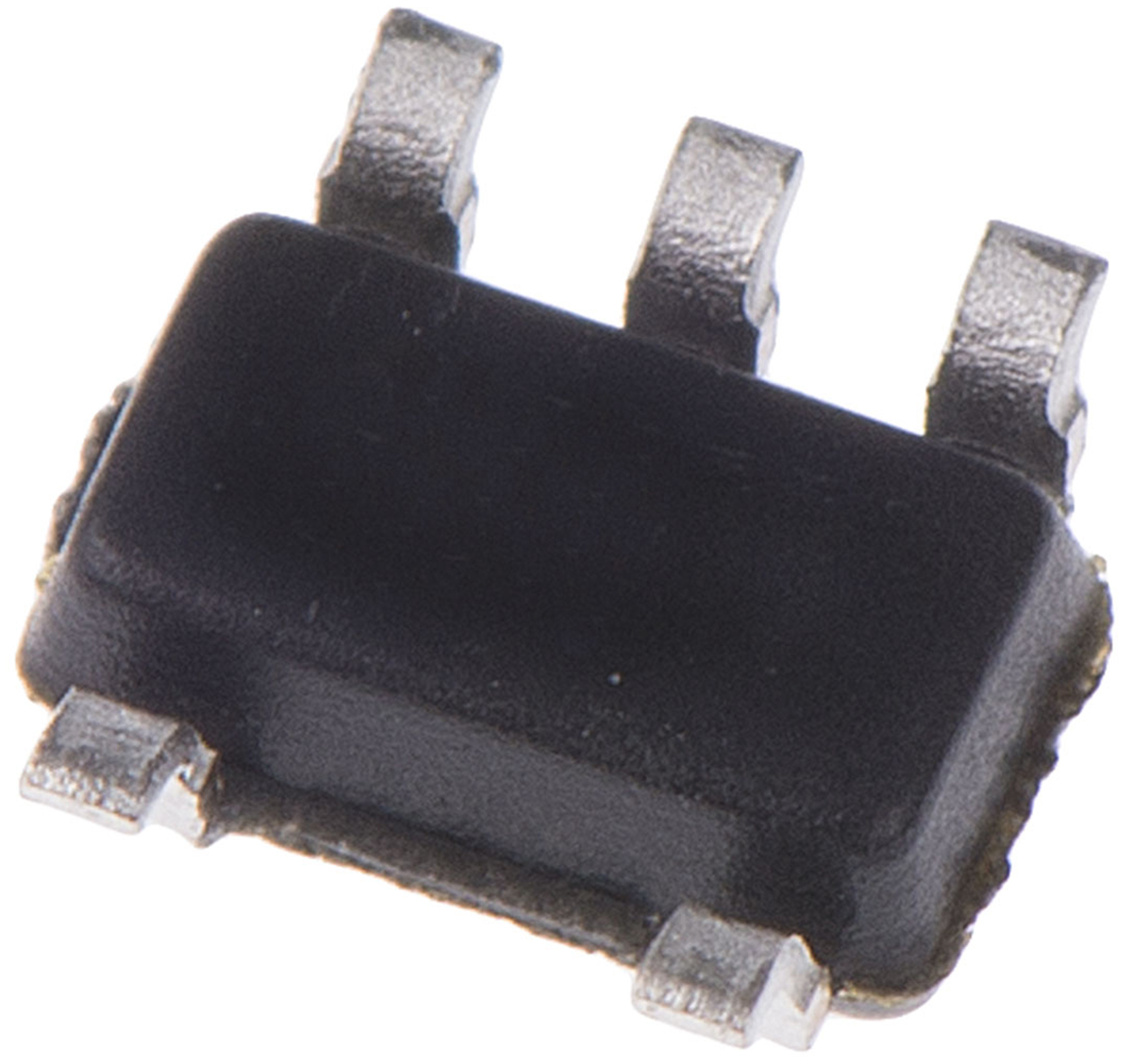

EXAR XRP6124HVES0.5-F, PWM Voltage Mode Controller, 4 A, 1000 kHz 5-Pin, SOT-23

Enrgtech Part No: ET20172906
|
Manufacturer Part No:
XRP6124HVES0.5-F
|
Manufacturer: MaxLinear

XRP6124HVES0-5-F EXAR XRP6124HVES0.5-F, PWM Voltage Mode Controller, 4 A, 1000 kHz 5-Pin, SOT-23

Product Information

Number of Outputs:

Rise Time:

45ns

Output Current:

4 A

Dimensions:

2.9 x 1.6 x 1.3mm

Mounting Type:

Surface Mount

Minimum Operating Supply Voltage:

4.5 V

Control Method:

Voltage

Maximum Switching Frequency:

1000 kHz

Height:

1.3mm

Width:

1.6mm

Length:

2.9mm

Output Voltage:

1.2 to 12 V

Checking for live stock

This is EXAR PWM Voltage Mode Controller 4 A 1000 kHz 5-Pin SOT-23 manufactured by MaxLinear. The manufacturer part number is XRP6124HVES0.5-F. Additionally, the product is supplied with 1 outputs. Whereas, the rise time is 45ns . It carries 4 a output current. The given dimensions of the product include 2.9 x 1.6 x 1.3mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 4.5 v. It features voltage controlling mechanism. It has a maximum 1000 khz switching frequency. In addition, the height is 1.3mm. Furthermore, the product is 1.6mm wide. Its accurate length is 2.9mm. Features a 1.2 to 12 v output voltage. The package is a sort of sot-23. Whereas, the minimum operating temperature of the product is -40 °c. It has 30 v maximum operating supply voltage. It has a standard voltage mode type PWM controller . Its fall time is about 35ns . It has a maximum operating temperature of +125 °c. It contains 5 pins. Topology includes buck.

XRP6124, Non-Synchronous PFET Step-Down Controller(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search XRP6124HVES0.5-F on website for other similar products.

We accept all major payment methods for all products including ET20172906. Please check your shopping cart at the time of order.

You can order MaxLinear brand products with XRP6124HVES0.5-F directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in PWM category are shipped in lowest possible time.

You will get a confirmation email regarding your order of EXAR XRP6124HVES0.5-F, PWM Voltage Mode Controller, 4 A, 1000 kHz 5-Pin, SOT-23. You can also check on our website or by contacting our customer support team for further order details on EXAR XRP6124HVES0.5-F, PWM Voltage Mode Controller, 4 A, 1000 kHz 5-Pin, SOT-23.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET20172906 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "MaxLinear" products on our website by using Enrgtech's Unique Manufacturing Part Number ET20172906.

Yes. We ship XRP6124HVES0.5-F Internationally to many countries around the world.
