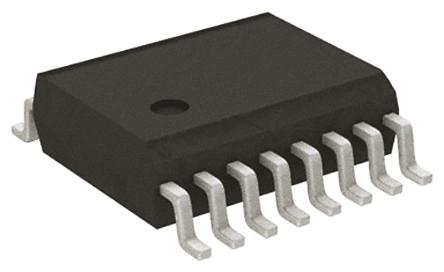

Linear Technology LTC3723EGN-1#PBF, PWM Controller 1 MHz 16-Pin, SSOP

LTC3723EGN-1-PBF Linear Technology LTC3723EGN-1#PBF, PWM Controller 1 MHz 16-Pin, SSOP
Analog Devices

Product Information

Dimensions:
4.978 x 3.988 x 1.501mm
Mounting Type:
Surface Mount
Maximum Sink Current:
5mA
Minimum Operating Supply Voltage:
6.5 V
Start-up Supply Current:
230µA
Maximum Source Current:
700µA
Maximum Supply Current:
8 mA
Height:
1.501mm
Width:
3.988mm
Length:
4.98mm
Package Type:
SSOP
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
9.5 V
Maximum Switching Frequency:
1 MHz
Maximum Operating Temperature:
+85 °C
Pin Count:
16
RoHs Compliant
Checking for live stock

This is Linear Technology PWM Controller 1 MHz 16-Pin SSOP manufactured by Analog Devices. The manufacturer part number is LTC3723EGN-1#PBF. The given dimensions of the product include 4.978 x 3.988 x 1.501mm. The product is available in surface mount configuration. It has a maximum 5ma sink current . While its minimum operating supply voltage is 6.5 v. Its start-up supply current is 230µa . It has a maximum 700µa source current . Moreover, it has a maximum 8 ma supply current . In addition, the height is 1.501mm. Furthermore, the product is 3.988mm wide. Its accurate length is 4.98mm. The package is a sort of ssop. Whereas, the minimum operating temperature of the product is -40 °c. It has 9.5 v maximum operating supply voltage. It has a maximum 1 mhz switching frequency. It has a maximum operating temperature of +85 °c. It contains 16 pins.

pdf icon
LTC3723EGN-1#PBF Synchronous Push-Pull PWM Controllers Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search LTC3723EGN-1#PBF on website for other similar products.
We accept all major payment methods for all products including ET18612824. Please check your shopping cart at the time of order.
You can order Analog Devices brand products with LTC3723EGN-1#PBF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in PWM category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Linear Technology LTC3723EGN-1#PBF, PWM Controller 1 MHz 16-Pin, SSOP. You can also check on our website or by contacting our customer support team for further order details on Linear Technology LTC3723EGN-1#PBF, PWM Controller 1 MHz 16-Pin, SSOP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18612824 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18612824.
Yes. We ship LTC3723EGN-1#PBF Internationally to many countries around the world.
