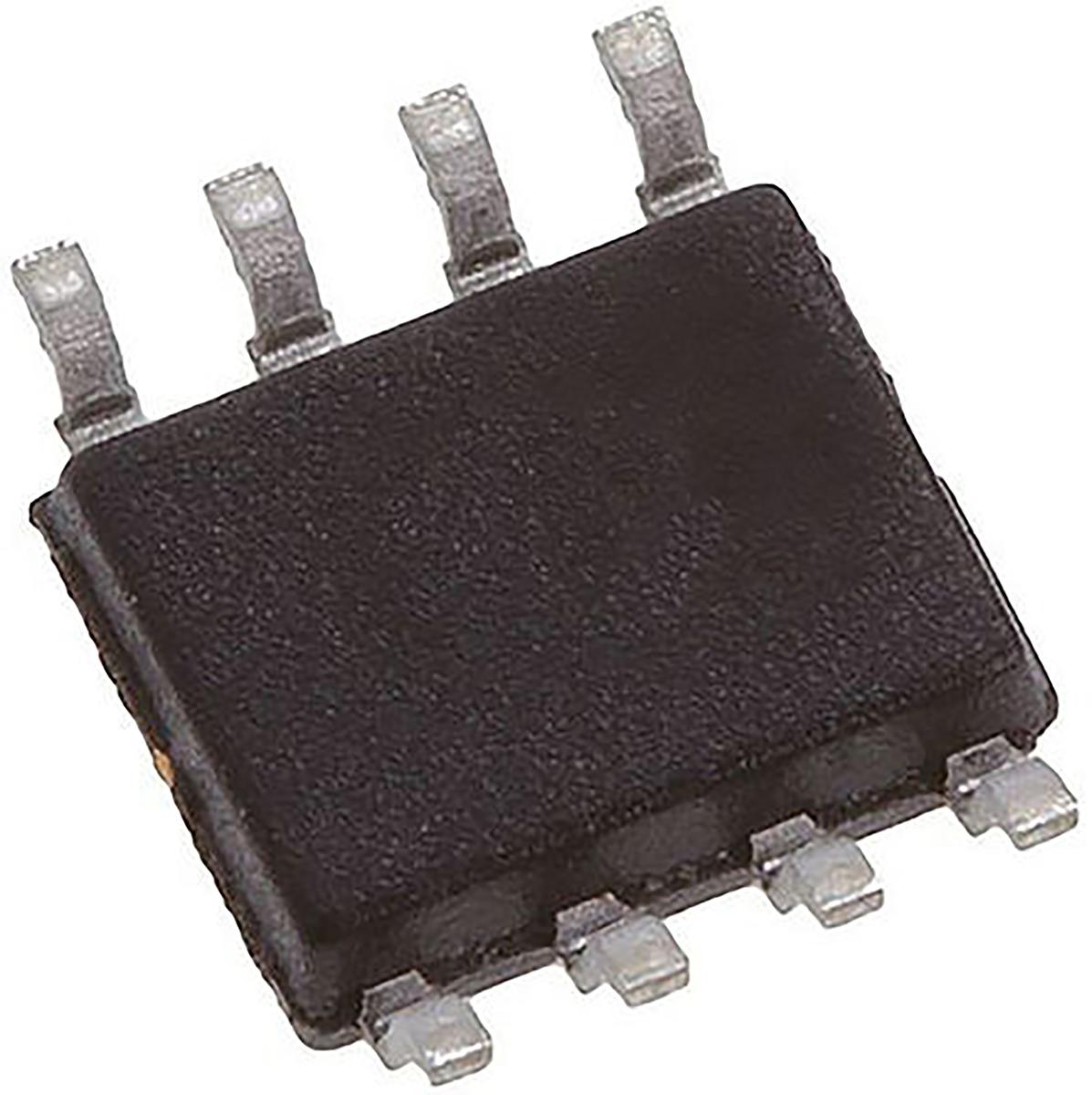

Analog Devices ADP2302ARDZ-3.3-R7, PWM Current Mode Controller, 2 A, 700 kHz, 3 → 20 V, 8-Pin SOIC

ADP2302ARDZ-3-3-R7 Analog Devices ADP2302ARDZ-3.3-R7, PWM Current Mode Controller, 2 A, 700 kHz, 3 → 20 V, 8-Pin SOIC
ADP2302ARDZ-3.3-R7
Analog Devices

Product Information

Dimensions:
5 x 4 x 1.75mm
Control Method:
Current
Width:
4mm
Fall Time:
280ns
Minimum Operating Supply Voltage:
3 V
Maximum Switching Frequency:
700 kHz
Package Type:
SOIC
Maximum Duty Cycle:
50%
Maximum Operating Supply Voltage:
20 V
Maximum Operating Temperature:
+125 °C
Topology:
Buck
Number of Outputs:
1
Length:
5mm
PWM Controller Type:
Current Mode
Pin Count:
8
Mounting Type:
Surface Mount
Output Current:
2 A
Height:
1.75mm
Output Voltage:
3.3 V
Minimum Operating Temperature:
-40 °C
Rise Time:
170ns
RoHs Compliant
Checking for live stock

This is PWM Current Mode Controller 2 A 700 kHz 3 → 20 V 8-Pin SOIC manufactured by Analog Devices. The manufacturer part number is ADP2302ARDZ-3.3-R7. The given dimensions of the product include 5 x 4 x 1.75mm. It features current controlling mechanism. Furthermore, the product is 4mm wide. Its fall time is about 280ns . While its minimum operating supply voltage is 3 v. It has a maximum 700 khz switching frequency. The package is a sort of soic. It has maximum 50% duty cycle . It has 20 v maximum operating supply voltage. It has a maximum operating temperature of +125 °c. Topology includes buck. Additionally, the product is supplied with 1 outputs. Its accurate length is 5mm. It has a standard current mode type PWM controller . It contains 8 pins. The product is available in surface mount configuration. It carries 2 a output current. In addition, the height is 1.75mm. Features a 3.3 v output voltage. Whereas, the minimum operating temperature of the product is -40 °c. Whereas, the rise time is 170ns .
