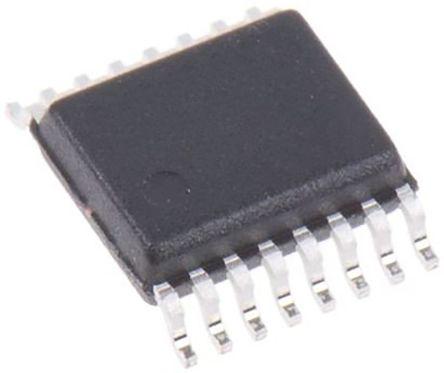

Maxim MAX1653EEE+, PWM Voltage Mode Controller, 50 mA, 300 kHz, QSOP 16-Pin

MAX1653EEE- Maxim MAX1653EEE+, PWM Voltage Mode Controller, 50 mA, 300 kHz, QSOP 16-Pin
MAX1653EEE+
Maxim

Product Information

Maximum Switching Frequency:
300 kHz
Rise Time:
200ns
Output Current:
50 mA
Dimensions:
4.98 x 3.99 x 1.481mm
Mounting Type:
Surface Mount
Number of PWM Outputs:
1
Minimum Operating Temperature:
-40 °C
Control Method:
Current
Synchronous Pin:
Yes
Height:
1.481mm
Typical Operating Supply Voltage:
4.5 → 30 V
Width:
3.99mm
Length:
4.98mm
Output Voltage:
5.5 V
Package Type:
QSOP
Maximum Duty Cycle:
99%
Fall Time:
200ns
Maximum Operating Temperature:
+85 °C
Pin Count:
16
Topology:
Buck
RoHs Compliant
Checking for live stock

This is PWM Voltage Mode Controller 50 mA 300 kHz QSOP 16-Pin manufactured by Maxim. The manufacturer part number is MAX1653EEE+. It has a maximum 300 khz switching frequency. Whereas, the rise time is 200ns . It carries 50 ma output current. The given dimensions of the product include 4.98 x 3.99 x 1.481mm. The product is available in surface mount configuration. It has 1 PWM output(s) . Whereas, the minimum operating temperature of the product is -40 °c. It features current controlling mechanism. It has a synchronous pin yes . In addition, the height is 1.481mm. It has 4.5 → 30 v of typical operating supply voltage. Furthermore, the product is 3.99mm wide. Its accurate length is 4.98mm. Features a 5.5 v output voltage. The package is a sort of qsop. It has maximum 99% duty cycle . Its fall time is about 200ns . It has a maximum operating temperature of +85 °c. It contains 16 pins. Topology includes buck.

pdf icon
MAX1652–MAX1655 High-Efficiency, PWM, Step-Down DC-DC Controllers in 16-Pin QSOP Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
