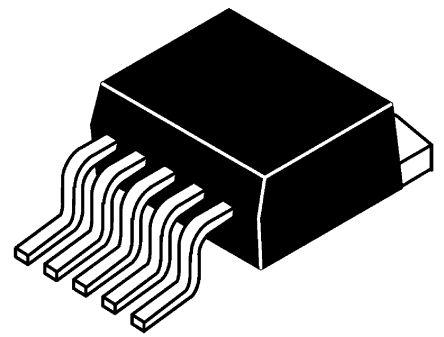

Micrel MIC2171WU TR PWM Switching Regulator, 400 μA, 115 kHz, 65 V, , TO-263 5-Pin

MIC2171WU-TR Micrel MIC2171WU TR PWM Switching Regulator, 400 μA, 115 kHz, 65 V, , TO-263 5-Pin
Micrel

Product Information

Maximum Switching Frequency:
115 kHz
Output Current:
400 μA
Dimensions:
10.66 x 9.169 x 4.597mm
Mounting Type:
Surface Mount
Number of PWM Outputs:
1
Minimum Operating Temperature:
-40 °C
Maximum Input Voltage:
40 V
Height:
4.597mm
Typical Operating Supply Voltage:
Maximum of 2.7 V
Width:
9.169mm
Length:
10.66mm
Output Voltage:
65 V
Package Type:
TO-263
Minimum Input Voltage:
3 V
PWM Controller Type:
Switching Regulator
Maximum Operating Temperature:
+85 °C
Pin Count:
5
Line Regulation:
0.6 %/V
RoHs Compliant
Checking for live stock

This is PWM Switching Regulator 400 μA 115 kHz 65 V TO-263 5-Pin manufactured by Micrel. The manufacturer part number is MIC2171WU TR. It has a maximum 115 khz switching frequency. It carries 400 μa output current. The given dimensions of the product include 10.66 x 9.169 x 4.597mm. The product is available in surface mount configuration. It has 1 PWM output(s) . Whereas, the minimum operating temperature of the product is -40 °c. 40 v is the maximum voltage of the bespoke product. In addition, the height is 4.597mm. It has maximum of 2.7 v of typical operating supply voltage. Furthermore, the product is 9.169mm wide. Its accurate length is 10.66mm. Features a 65 v output voltage. The package is a sort of to-263. The product has 3 v of minimum input voltage. It has a standard switching regulator type PWM controller . It has a maximum operating temperature of +85 °c. It contains 5 pins. Has a line regulation of 0.6 %/v.

pdf icon
MIC2171 100kHz 2.5A Switching Regulator(Technical Reference)
