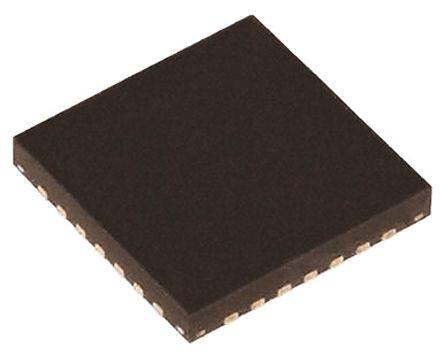

EXAR XR76112EL-F PWM Switching Regulator, 12 A, 800 kHz, Adjustable, 4.8 → 5.2 V, , QFN 30-Pin

XR76112EL-F EXAR PWM Switching Regulator, 12 A, 800 kHz, Adjustable, 4.8 → 5.2 V, , QFN 30-Pin
EXAR

Product Information

Maximum Switching Frequency:
800 kHz
Load Regulation:
±0.25 %
Output Current:
12 A
Dimensions:
5 x 5 x 0.95mm
Mounting Type:
Surface Mount
Number of PWM Outputs:
1
Minimum Operating Temperature:
-40 °C
Maximum Input Voltage:
22 V
Output Type:
Adjustable
Height:
0.95mm
Width:
5mm
Length:
5mm
Output Voltage:
4.8 → 5.2 V
Package Type:
QFN
Minimum Input Voltage:
4.5 V
PWM Controller Type:
Step Down
Maximum Operating Temperature:
+125 °C
Pin Count:
30
Line Regulation:
±0.1 %
RoHs Compliant
Checking for live stock

This is PWM Switching Regulator 12 A 800 kHz Adjustable 4.8 → 5.2 V QFN 30-Pin manufactured by EXAR. The manufacturer part number is XR76112EL-F. It has a maximum 800 khz switching frequency. Load Regulation - ±0.25 %. It carries 12 a output current. The given dimensions of the product include 5 x 5 x 0.95mm. The product is available in surface mount configuration. It has 1 PWM output(s) . Whereas, the minimum operating temperature of the product is -40 °c. 22 v is the maximum voltage of the bespoke product. Furthermore, it has aadjustable output. In addition, the height is 0.95mm. Furthermore, the product is 5mm wide. Its accurate length is 5mm. Features a 4.8 → 5.2 v output voltage. The package is a sort of qfn. The product has 4.5 v of minimum input voltage. It has a standard step down type PWM controller . It has a maximum operating temperature of +125 °c. It contains 30 pins. Has a line regulation of ±0.1 %.

pdf icon
XR76108 and XR76112 PowerBlox™ Synchronous Step Down COT Regulator Data Sheet(Technical Reference)
