Name: MCP1631-E/ML, Microchip
Brand: Microchip
SKU: ET13810074
Price: 0.30 GBP
Availability: Discontinued

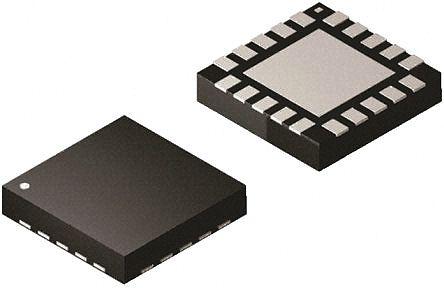

MCP1631-E-ML Microchip MCP1631-E/ML, PWM Controller 2 MHz, 3 → 5.5 V 20-Pin, QFN

(0)

Product Information

Dimensions:

4 x 4 x 1mm

Mounting Type:

Surface Mount

Maximum Sink Current:

12mA

Minimum Operating Supply Voltage:

3 V

Maximum Source Current:

-9.8mA

Height:

1mm

Width:

4mm

Length:

4mm

Package Type:

QFN

Minimum Operating Temperature:

-40 °C

Maximum Operating Supply Voltage:

5.5 V

Maximum Switching Frequency:

2 MHz

Checking for live stock

This is PWM Controller 2 MHz 3 → 5.5 V 20-Pin QFN manufactured by Microchip. The manufacturer part number is MCP1631-E/ML. The given dimensions of the product include 4 x 4 x 1mm. The product is available in surface mount configuration. It has a maximum 12ma sink current . While its minimum operating supply voltage is 3 v. It has a maximum -9.8ma source current . In addition, the height is 1mm. Furthermore, the product is 4mm wide. Its accurate length is 4mm. The package is a sort of qfn. Whereas, the minimum operating temperature of the product is -40 °c. It has 5.5 v maximum operating supply voltage. It has a maximum 2 mhz switching frequency. It has a maximum operating temperature of +125 °c. It contains 20 pins.
