EAO 82-6151.2123.B002

82-6151-2123-B002 EAO 82-6151.2123.B002
82-6151.2123.B002
EAO

Product Information

Push Button Style:
Round
Case Colour:
Silver
Contact AC Voltage Rating:
240V
Illuminated:
Yes
Contact Current Rating:
3A
Voltage Rating:
240V
Operating Temperature Range:
-30°C to +70°C
Maximum Operating Temperature:
+70°C
Terminal Type:
Plug In, Solder
IP Rating:
IP65, IP67
LED Colour:
Blue
Contact Configuration:
SPDT
Manufacturer Part No.:
82-6151.2123.B002
Switch Operation:
Latching
Mounting Type:
Panel Mount
Series:
82
Contact DC Voltage Rating:
240V
Legend:
Standby Symbol
Minimum Operating Temperature:
-30°C
Panel Cut Out Diameter:
22.3mm
Contact Material:
Silver Alloy
HTSUS:
8536.50.9033
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder, Quick Connect - 0.110" (2.8mm)
Voltage Rating - DC:
240 V
Operating Temperature:
-30°C ~ 70°C
Panel Cutout Dimensions:
Circular - 22.30mm Dia
Type:
Standard, Illuminated
Color - Actuator/Cap:
Silver
Voltage Rating - AC:
240 V
REACH Status:
REACH Affected
Illumination Type, Color:
LED, Blue
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
Not Applicable
Actuator Marking:
Standby Symbol
Circuit:
SPDT
standardLeadTime:
14 Weeks
Current Rating (Amps):
3A (AC/DC)
Ingress Protection:
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Features:
-
Mounting Type:
Panel Mount, Front
Series:
82
Packaging:
Bulk
Actuator Type:
Round, Button, Flush
Illumination Voltage (Nominal):
12 VAC/DC
Base Product Number:
82-6151
ECCN:
EAR99
RoHs Compliant

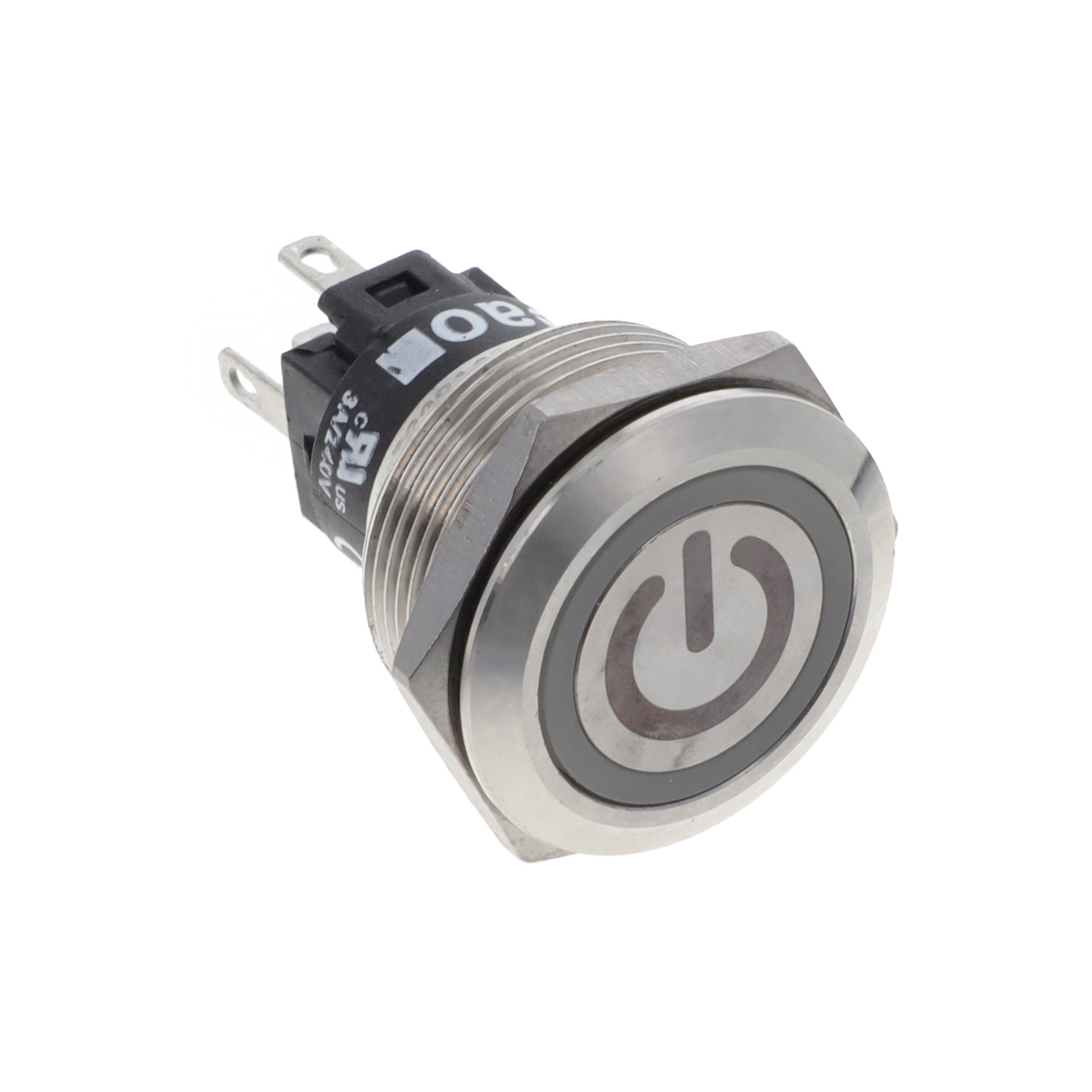

Checking for live stock

This is manufactured by EAO. The manufacturer part number is 82-6151.2123.B002. This pushbutton has a round style pushbutton and is easy to use. The casing is finished with an adorable silver colour. Its contact AC voltage rating is about 240v . Illumination Option yes. The rated contact current is 3a. Moreover, the product has a nominal 240v voltage rating. The product has -30°c to +70°c of operating temperature range. It has a maximum operating temperature of +70°c. The terminal is a plug in, solder type. It is IP rated with ip65, ip67. The LED has an adorable blue colour. The contact is equipped with spdt configuration. The product has an assigned 82-6151.2123.b002 manufacturer part number. It provides latching switch operation. The product is available in panel mount configuration. The product 82, is a highly preferred choice for users. It has about 240v contact DC voltage rating . Legend Information: standby symbol. Whereas, the minimum operating temperature of the product is -30°c. The panel has a 22.3mm cut-out diameter. The product is made from sturdy silver alloy materials. It is assigned with possible HTSUS value of 8536.50.9033. The product is rohs3 compliant. Moreover, it has solder, quick connect - 0.110" (2.8mm) terminal style. 240 v of DC voltage rating. The product has -30°c ~ 70°c operating temperature range. It also has a circular - 22.30mm dia dimensional features. It comes in standard, illuminated configuration. It is made from silver. The product exhibits 240 v of AC voltage rating. In addition, it is reach affected. It is supplied with led, blue illumination. It is designed as a on-on switching function. Its typical moisture sensitivity level is not applicable. The actuator marking of the product corelates with standby symbol. It has an integral spdt circuit. It has a long 14 weeks standard lead time. Additionally, the product's output is 3a (ac/dc). It is IP rated with ip65/ip67 - dust tight, water resistant, waterproof. The product is available in panel mount, front configuration. In addition, bulk is the available packaging type of the product. The product carries round, button, flush actuator. The nominal illumination voltage of the product is 12 vac/dc. Moreover, it corresponds to 82-6151, a base product number of the product. The product is designated with the ear99 code number.
