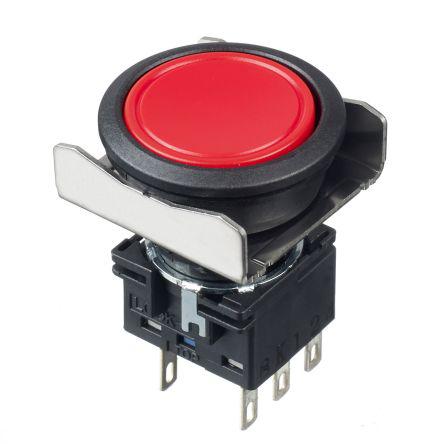

Red Round Push Button Switch

LBW6B-A1T6R Red Round Push Button Switch
Idec

Product Information

HTSUS:
8536.50.9033
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder, Quick Connect - 0.110" (2.8mm)
Voltage Rating - DC:
30 V
Operating Temperature:
-25°C ~ 60°C
Panel Cutout Dimensions:
Circular - 22.30mm Dia
Type:
Standard
Color - Actuator/Cap:
Red
Voltage Rating - AC:
125 V
Illumination Type, Color:
-
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
DPDT
standardLeadTime:
35 Weeks
Current Rating (Amps):
5A (AC/DC)
Ingress Protection:
IP65 - Dust Tight, Water Resistant
Features:
-
Mounting Type:
Panel Mount, Front
Series:
LBW
Packaging:
Bulk
Actuator Type:
Round, Button, Flush
Illumination Voltage (Nominal):
-
Base Product Number:
LBW6B
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Red Round Push Button Switch manufactured by Idec. The manufacturer part number is LBW6B-A1T6R. It is assigned with possible HTSUS value of 8536.50.9033. The product is rohs3 compliant. Moreover, it has solder, quick connect - 0.110" (2.8mm) terminal style. 30 v of DC voltage rating. The product has -25°c ~ 60°c operating temperature range. It also has a circular - 22.30mm dia dimensional features. It comes in standard configuration. It is made from red. The product exhibits 125 v of AC voltage rating. It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral dpdt circuit. It has a long 35 weeks standard lead time. Additionally, the product's output is 5a (ac/dc). It is IP rated with ip65 - dust tight, water resistant. The product is available in panel mount, front configuration. The product lbw, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product carries round, button, flush actuator. Moreover, it corresponds to lbw6b, a base product number of the product. The product is designated with the ear99 code number.
