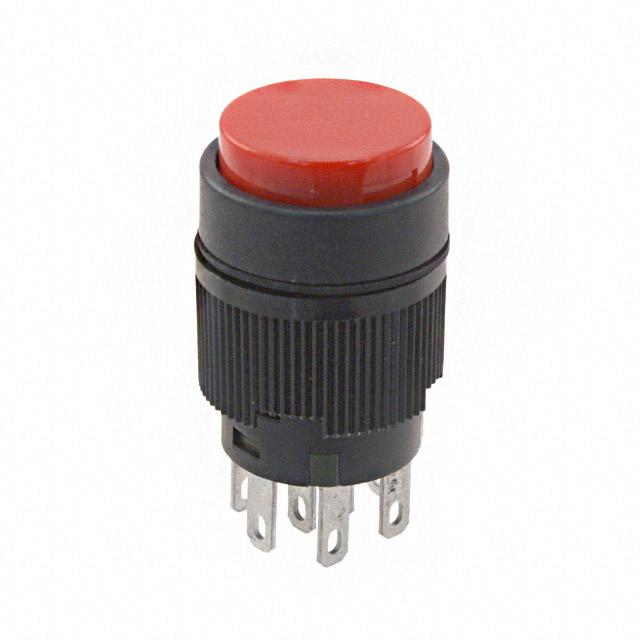

NKK Switches YB25WCKW01-12-CB

YB25WCKW01-12-CB NKK Switches
NKK Switches

Product Information

HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Electrical Life:
100,000 Cycles
Termination Style:
Solder, Quick Connect - 0.110" (2.8mm)
Voltage Rating - DC:
30 V
Operating Temperature:
-25°C ~ 50°C
Panel Cutout Dimensions:
Circular - 16.00mm Dia
Mechanical Life:
1,000,000 Cycles
Type:
Standard, Illuminated
title:
YB25WCKW01-12-CB
Voltage Rating - AC:
125 V
REACH Status:
REACH Unaffected
edacadModel:
YB25WCKW01-12-CB Models
edacadModelUrl:
/en/models/2107402
Illumination Type, Color:
Incandescent, Red
Switch Function:
On-Mom
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
DPDT
Current Rating (Amps):
3A (AC/DC)
Ingress Protection:
IP65 - Dust Tight, Water Resistant
Features:
Voltage Reduction Lighting
Mounting Type:
Panel Mount, Front
Series:
YB
Packaging:
Bulk
Color - Actuator/Cap:
Red (White Filter/Diffuser)
Actuator Type:
Round, Button
Illumination Voltage (Nominal):
12 VAC
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is YB25WCKW01-12-CB. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. The product offers long-lasting services of 100,000 cycles. Moreover, it has solder, quick connect - 0.110" (2.8mm) terminal style. 30 v of DC voltage rating. The product has -25°c ~ 50°c operating temperature range. It also has a circular - 16.00mm dia dimensional features. The product also provide mechanical stability with 1,000,000 cycles. It comes in standard, illuminated configuration. The product exhibits 125 v of AC voltage rating. In addition, it is reach unaffected. It is supplied with incandescent, red illumination. It is designed as a on-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral dpdt circuit. Additionally, the product's output is 3a (ac/dc). It is IP rated with ip65 - dust tight, water resistant. The splendid features of the product include voltage reduction lighting. The product is available in panel mount, front configuration. The product yb, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It is made from red (white filter/diffuser). The product carries round, button actuator. The nominal illumination voltage of the product is 12 vac. The product is designated with the ear99 code number.
