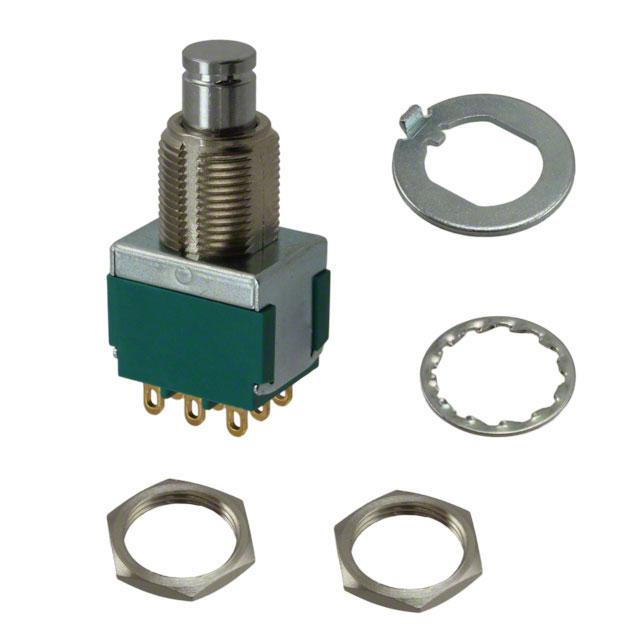

TE Connectivity ALCOSWITCH Switches MPG306D

MPG306D TE Connectivity ALCOSWITCH Switches
MPG306D
TE Connectivity ALCOSWITCH Switches

Product Information

HTSUS:
8536.50.9035
RoHS Status:
ROHS3 Compliant
Termination Style:
Solder Lug
Voltage Rating - DC:
28 V
Operating Temperature:
-20°C ~ 80°C
Panel Cutout Dimensions:
Circular - 11.80mm Dia
Type:
Standard
Color - Actuator/Cap:
Black
Voltage Rating - AC:
125 V
REACH Status:
REACH Affected
Illumination Type, Color:
-
Switch Function:
On-On
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
3PDT
standardLeadTime:
25 Weeks
Current Rating (Amps):
6A (AC), 4A (DC)
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount, Rear
Series:
MPG
Packaging:
Bulk
Actuator Type:
Round, Button
Illumination Voltage (Nominal):
-
Base Product Number:
MPG3
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity ALCOSWITCH Switches. The manufacturer part number is MPG306D. It is assigned with possible HTSUS value of 8536.50.9035. The product is rohs3 compliant. Moreover, it has solder lug terminal style. 28 v of DC voltage rating. The product has -20°c ~ 80°c operating temperature range. It also has a circular - 11.80mm dia dimensional features. It comes in standard configuration. It is made from black. The product exhibits 125 v of AC voltage rating. In addition, it is reach affected. It is designed as a on-on switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral 3pdt circuit. It has a long 25 weeks standard lead time. Additionally, the product's output is 6a (ac), 4a (dc). The product is available in panel mount, rear configuration. The product mpg, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product carries round, button actuator. Moreover, it corresponds to mpg3, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
14375yy Stamping 17/Jul/2014(PCN Design/Specification)
pdf icon
5-1437567-5(Datasheets)
