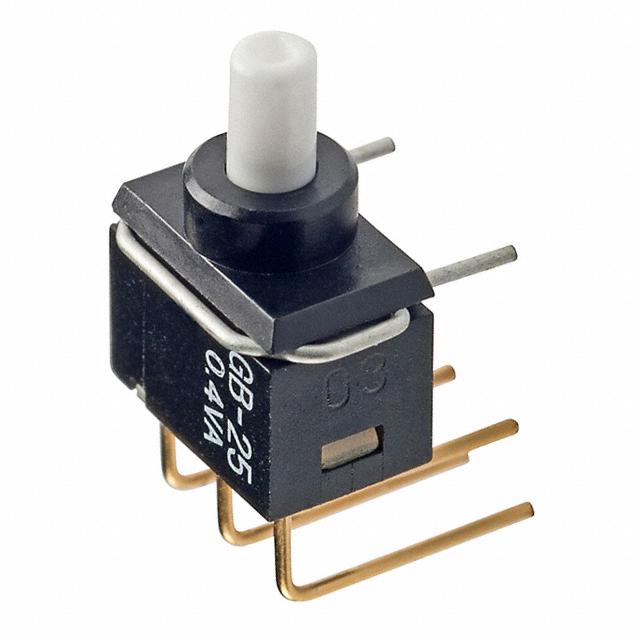

NKK Switches GB25AH

GB25AH NKK Switches
NKK Switches

Product Information

HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Electrical Life:
50,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
28 V
Operating Temperature:
-30°C ~ 85°C
Panel Cutout Dimensions:
-
Mechanical Life:
50,000 Cycles
Type:
Standard
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
edacadModel:
GB25AH Models
edacadModelUrl:
/en/models/2104144
Illumination Type, Color:
-
Package:
Box
Switch Function:
On-Mom
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
No Marking
Circuit:
DPDT
standardLeadTime:
26 Weeks
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
GB
Color - Actuator/Cap:
White
Actuator Type:
Plunger for Cap
Illumination Voltage (Nominal):
-
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is GB25AH. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. The product offers long-lasting services of 50,000 cycles. Moreover, it has pc pin terminal style. 28 v of DC voltage rating. The product has -30°c ~ 85°c operating temperature range. The product also provide mechanical stability with 50,000 cycles. It comes in standard configuration. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in box package . It is designed as a on-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with no marking. It has an integral dpdt circuit. It has a long 26 weeks standard lead time. Additionally, the product's output is 0.4va (ac/dc). The product is available in through hole, right angle configuration. The product gb, is a highly preferred choice for users. It is made from white. The product carries plunger for cap actuator. The product is designated with the ear99 code number.
