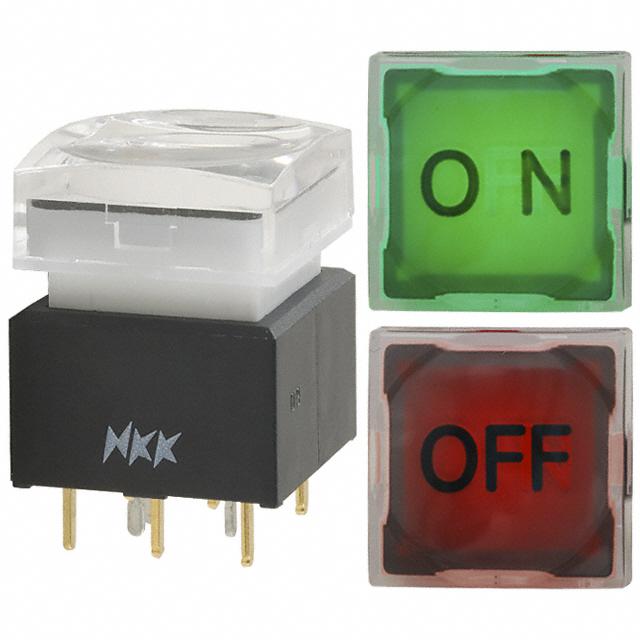

NKK Switches UB225SKG036CF-4J01

UB225SKG036CF-4J01 NKK Switches
NKK Switches

Product Information

HTSUS:
8536.50.9031
Voltage Rating - AC:
28 V
Electrical Life:
200,000 Cycles
Termination Style:
PC Pin
Voltage Rating - DC:
28 V
Operating Temperature:
-25°C ~ 50°C
Panel Cutout Dimensions:
-
Mechanical Life:
1,000,000 Cycles
Type:
Standard, Illuminated
REACH Status:
REACH Unaffected
Illumination Type, Color:
LED, Green/Red
Package:
Tray
Switch Function:
On-Mom
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Actuator Marking:
ON/OFF
Circuit:
DPDT
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
UB2
Color - Actuator/Cap:
Clear
Actuator Type:
Square, Button, Alternating Legend
Illumination Voltage (Nominal):
2.1, 3.5 VDC
ECCN:
EAR99
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is UB225SKG036CF-4J01. It is assigned with possible HTSUS value of 8536.50.9031. The product exhibits 28 v of AC voltage rating. The product offers long-lasting services of 200,000 cycles. Moreover, it has pc pin terminal style. 28 v of DC voltage rating. The product has -25°c ~ 50°c operating temperature range. The product also provide mechanical stability with 1,000,000 cycles. It comes in standard, illuminated configuration. In addition, it is reach unaffected. It is supplied with led, green/red illumination. It is shipped in tray package . It is designed as a on-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). The actuator marking of the product corelates with on/off. It has an integral dpdt circuit. Additionally, the product's output is 0.4va (ac/dc). The product is available in through hole configuration. The product ub2, is a highly preferred choice for users. It is made from clear. The product carries square, button, alternating legend actuator. The nominal illumination voltage of the product is 2.1, 3.5 vdc. The product is designated with the ear99 code number.

pdf icon
UB, UB2 Epoxy Seal Material 18/Jun/2010(PCN Design/Specification)
pdf icon
LB.UB,UB2 Series 31/Mar/2016(PCN Design/Specification)
pdf icon
UB2 Indicators(Datasheets)
pdf icon
UB2 Series Datasheet(Datasheets)
