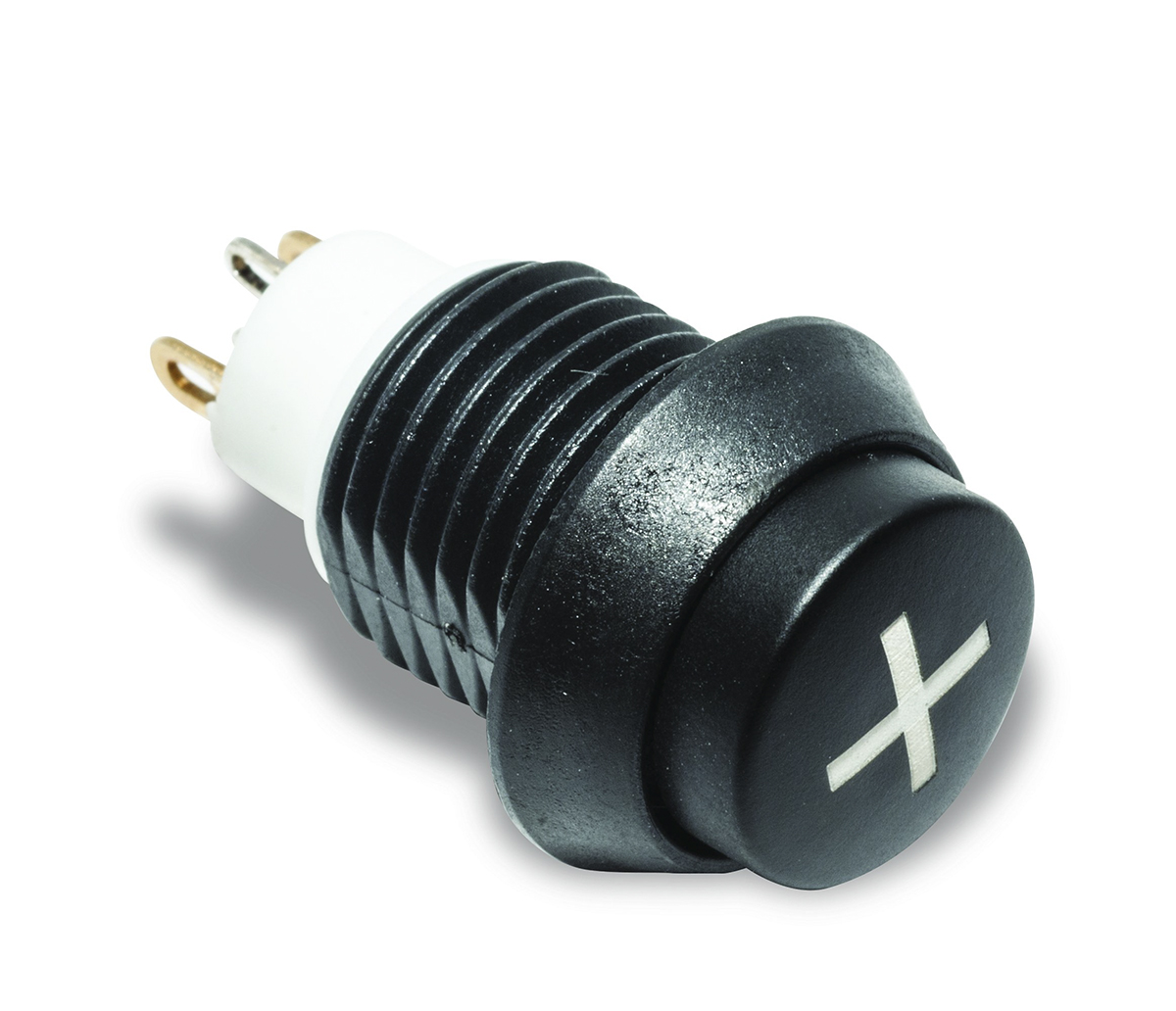

SPST Momentary Push Button Switch, IP67, 13.7 (Dia.) x 13mm, Panel Mount Blue LED, Plus (Symbol), 24V dc

APB4E07TZBE001 SPST Momentary Push Button Switch, IP67, 13.7 (Dia.) x 13mm, Panel Mount Blue LED, Plus (Symbol), 24V dc
C & K

Product Information

Panel Cut Out Height:
13mm
Illuminated:
Yes
Mounting Type:
Panel Mount
IP Rating:
IP67
Contact Current Rating:
200 mA @ 24 V dc
Panel Cut Out Diameter:
13.7mm
Voltage Rating:
24V dc
Contact DC Voltage Rating:
24V
Push Button Style:
Round
LED Colour:
Blue
Case Colour:
Black
Push Button Colour:
Black
Contact Configuration:
SPST
Terminal Type:
Solder
Manufacturer Part No.:
APB4E07TZBE001
Switch Operation:
Momentary
Legend:
Plus (Symbol)
Contact Material:
Copper Alloy
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Electrical Life:
500,000 Cycles
Termination Style:
Solder Lug
Voltage Rating - DC:
24 V
Operating Temperature:
-40°C ~ 85°C
Panel Cutout Dimensions:
Circular - 13.80mm Dia
Mechanical Life:
1,000,000 Cycles
Type:
Standard, Illuminated
Color - Actuator/Cap:
Black
title:
APB4E07TZBE001
Voltage Rating - AC:
125 V
Illumination Type, Color:
LED, Blue
Switch Function:
Off-Mom
Circuit:
SPST-NO
standardLeadTime:
8 Weeks
Current Rating (Amps):
125mA (AC), 200mA (DC)
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
-
Mounting Type:
Panel Mount, Front
Series:
APB
Packaging:
Bulk
Actuator Type:
Round, Button
Illumination Voltage (Nominal):
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is SPST Momentary Push Button Switch IP67 13.7 (Dia.) x 13mm Panel Mount Blue LED Plus (Symbol) 24V dc manufactured by C & K. The manufacturer part number is APB4E07TZBE001. Its panel cut out is 13mm in height . Illumination Option yes. The product is available in panel mount configuration. It is IP rated with ip67. The rated contact current is 200 ma @ 24 v dc. The panel has a 13.7mm cut-out diameter. Moreover, the product has a nominal 24v dc voltage rating. It has about 24v contact DC voltage rating . This pushbutton has a round style pushbutton and is easy to use. The LED has an adorable blue colour. The casing is finished with an adorable black colour. While it has an adorable black colour. The contact is equipped with spst configuration. The terminal is a solder type. The product has an assigned apb4e07tzbe001 manufacturer part number. It provides momentary switch operation. Legend Information: plus (symbol). The product is made from sturdy copper alloy materials. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. The product offers long-lasting services of 500,000 cycles. Moreover, it has solder lug terminal style. 24 v of DC voltage rating. The product has -40°c ~ 85°c operating temperature range. It also has a circular - 13.80mm dia dimensional features. The product also provide mechanical stability with 1,000,000 cycles. It comes in standard, illuminated configuration. It is made from black. The product exhibits 125 v of AC voltage rating. It is supplied with led, blue illumination. It is designed as a off-mom switching function. It has an integral spst-no circuit. It has a long 8 weeks standard lead time. Additionally, the product's output is 125ma (ac), 200ma (dc). It is IP rated with ip67 - dust tight, waterproof. The product is available in panel mount, front configuration. The product apb, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product carries round, button actuator. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
APB Series Symbol Overview(Technical Reference)
