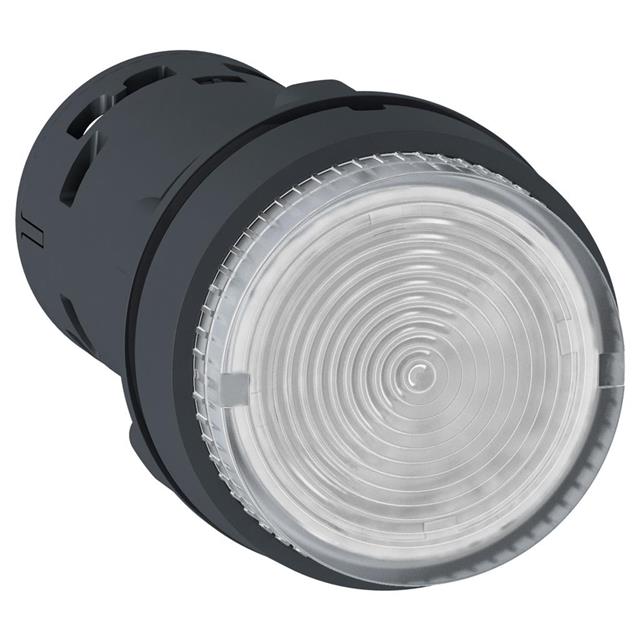

Schneider Electric XB7 Illuminated Clear Push Button NO Spring Return

XB7NW37G1 Schneider Electric XB7 Illuminated Clear Push Button NO Spring Return
XB7NW37G1
Schneider Electric

Product Information

Maximum Current:
17 mA
Maximum AC Voltage:
120V
Illuminated:
Yes
Mounting Type:
Panel Mount
IP Rating:
IP20, IP65
Minimum Operating Temperature:
-25°C
Series:
XB7
Illumination Voltage:
120V
Push Button Style:
Round
Contact Configuration:
NO
Push Button Actuation:
Spring Return
Push Button Colour:
Clear
Cutout Diameter:
22mm
Maximum Operating Temperature:
+70°C
Terminal Type:
Screw
HTSUS:
8536.50.9033
RoHS Status:
ROHS3 Compliant
Electrical Life:
1,000,000 Cycles
Termination Style:
Screw Terminal
Voltage Rating - DC:
125 V
Operating Temperature:
-25°C ~ 70°C
Panel Cutout Dimensions:
Circular - 22.00mm Dia
Mechanical Life:
300,000 Cycles
Type:
Standard, Illuminated
Color - Actuator/Cap:
Orange
title:
XB7NW37G1
Voltage Rating - AC:
120 V
Illumination Type, Color:
LED, Orange
Switch Function:
On-Off
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Current Rating (Amps):
600mA (AC), 220mA (DC)
Ingress Protection:
IP65 - Dust Tight, Water Resistant
Features:
-
Mounting Type:
Panel Mount, Front
Series:
Harmony XB7
Packaging:
Box
Actuator Type:
Round, Button, Flush
Illumination Voltage (Nominal):
120 VAC
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is XB7 Illuminated Clear Push Button NO Spring Return manufactured by Schneider Electric. The manufacturer part number is XB7NW37G1. It also carries 17 ma maximum current. A bespoke product carries 120v of maximum AC voltage. Illumination Option yes. The product is available in panel mount configuration. It is IP rated with ip20, ip65. Whereas, the minimum operating temperature of the product is -25°c. The product xb7, is a highly preferred choice for users. It has a typical 120v illumination voltage . This pushbutton has a round style pushbutton and is easy to use. The contact is equipped with no configuration. The push button has spring return actuation mechanism. While it has an adorable clear colour. Whereas its cut-out diameter is 22mm. It has a maximum operating temperature of +70°c. The terminal is a screw type. It is assigned with possible HTSUS value of 8536.50.9033. The product is rohs3 compliant. The product offers long-lasting services of 1,000,000 cycles. Moreover, it has screw terminal terminal style. 125 v of DC voltage rating. The product has -25°c ~ 70°c operating temperature range. It also has a circular - 22.00mm dia dimensional features. The product also provide mechanical stability with 300,000 cycles. It comes in standard, illuminated configuration. It is made from orange. The product exhibits 120 v of AC voltage rating. It is supplied with led, orange illumination. It is designed as a on-off switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. Additionally, the product's output is 600ma (ac), 220ma (dc). It is IP rated with ip65 - dust tight, water resistant. The product is available in panel mount, front configuration. The product harmony xb7, is a highly preferred choice for users. In addition, box is the available packaging type of the product. The product carries round, button, flush actuator. The nominal illumination voltage of the product is 120 vac. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
DK OBS NOTICE(PCN Obsolescence/ EOL)
pdf icon
XB7NW37G1 Datasheet(Datasheets)
