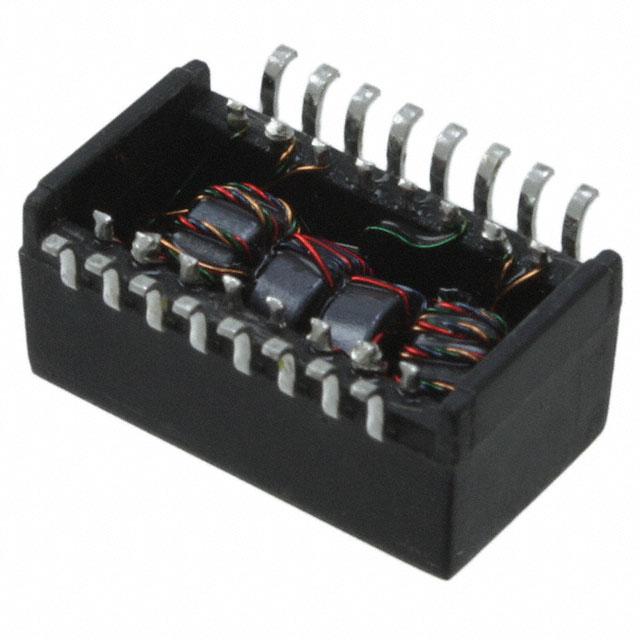

Pulse Electronics H2260NLT

Enrgtech Part No: ET23567405
|
Manufacturer Part No:
H2260NLT
|
Manufacturer: Pulse Electronics

Product Information

HTSUS:

8504.31.2000

RoHS Status:

RoHS Compliant

Operating Temperature:

0°C ~ 70°C

edacadModel:

H2260NLT Models

Height - Seated (Max):

0.240" (6.10mm)

REACH Status:

REACH Unaffected

Inductance:

edacadModelUrl:

/en/models/2265734

Package:

Tape & Reel (TR)

ET (Volt-Time):

Size / Dimension:

0.500" L x 0.280" W (12.70mm x 7.11mm)

Transformer Type:

Isolation and Data Interface (Encapsulated)

Checking for live stock

This is manufactured by Pulse Electronics. The manufacturer part number is H2260NLT. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs compliant. The product has 0°c ~ 70°c operating temperature range. It has the maximum seated height of 0.240" (6.10mm). In addition, it is reach unaffected. It is shipped in tape & reel (tr) package . The product's diameters include 0.500" l x 0.280" w (12.70mm x 7.11mm). It is a isolation and data interface (encapsulated) transformer. The typical primary and secondary turn ratio is 1:1. It has a long 9 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The typical product's weight is 0.1 oz (2.85 g). The product star magnetics™, is a highly preferred choice for users. The product is designated with the ear99 code number.

Pulse RoHS(UNKNOWN TYPE)

Pulse Larson REACH(Environmental Information)

Ink to Laser Marking 03/Jul/2018(PCN Design/Specification)

Thermoplastic Header Design 28/Jun/2013(PCN Design/Specification)

Halo Injunction Res 1/Sep/2015(PCN Other)

Packages FNL vs. NL(Other Related Documents)

H2260NL Drawing(Product Drawings)
