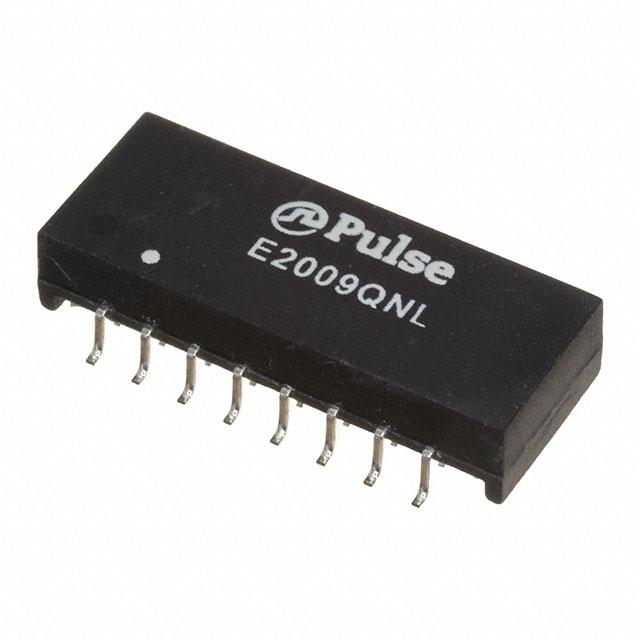

Pulse Electronics E2009QNL

E2009QNL Pulse Electronics
Pulse Electronics

Product Information

HTSUS:
8504.31.2000
RoHS Status:
RoHS Compliant
Operating Temperature:
0°C ~ 70°C
Height - Seated (Max):
0.230" (5.84mm)
REACH Status:
REACH Unaffected
Inductance:
-
Package:
Tube
ET (Volt-Time):
-
Size / Dimension:
1.000" L x 0.385" W (25.40mm x 9.78mm)
Transformer Type:
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary:
1:1.414
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Weight:
0.09 oz (2.56 g)
Series:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Pulse Electronics. The manufacturer part number is E2009QNL. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs compliant. The product has 0°c ~ 70°c operating temperature range. It has the maximum seated height of 0.230" (5.84mm). In addition, it is reach unaffected. It is shipped in tube package . The product's diameters include 1.000" l x 0.385" w (25.40mm x 9.78mm). It is a isolation and data interface (encapsulated) transformer. The typical primary and secondary turn ratio is 1:1.414. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The typical product's weight is 0.09 oz (2.56 g). The product is designated with the ear99 code number.

pdf icon
Mult Dev OBS 01/Mar/2021(PCN Obsolescence/ EOL)
pdf icon
E200x,PE-680xx(Datasheets)
pdf icon
Ink to Laser Marking 03/Jul/2018(PCN Design/Specification)
