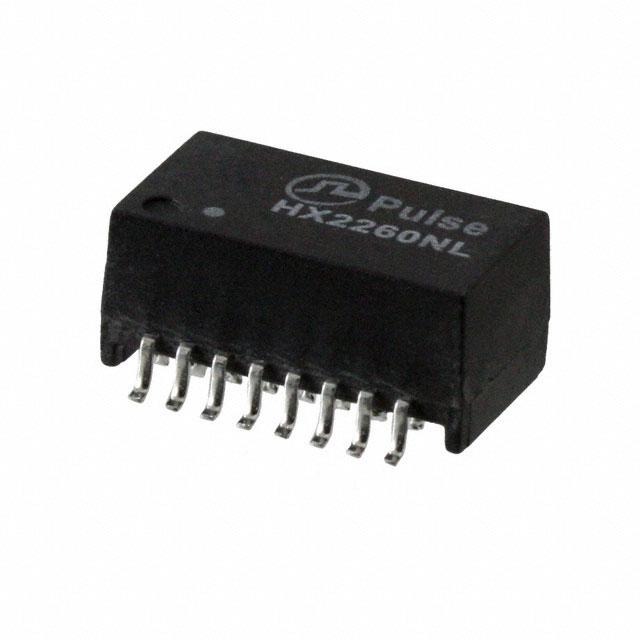

Pulse Electronics HX2260NL

Enrgtech Part No: ET23565320
|
Manufacturer Part No:
HX2260NL
|
Manufacturer: Pulse Electronics

Product Information

HTSUS:

8504.31.2000

RoHS Status:

RoHS Compliant

Operating Temperature:

-40°C ~ 85°C

Height - Seated (Max):

0.245" (6.22mm)

REACH Status:

REACH Unaffected

Inductance:

Package:

Tube

ET (Volt-Time):

Size / Dimension:

0.500" L x 0.280" W (12.70mm x 7.11mm)

Transformer Type:

Isolation and Data Interface (Encapsulated)

Turns Ratio - Primary:Secondary:

1:1

standardLeadTime:

10 Weeks

Checking for live stock

This is manufactured by Pulse Electronics. The manufacturer part number is HX2260NL. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs compliant. The product has -40°c ~ 85°c operating temperature range. It has the maximum seated height of 0.245" (6.22mm). In addition, it is reach unaffected. It is shipped in tube package . The product's diameters include 0.500" l x 0.280" w (12.70mm x 7.11mm). It is a isolation and data interface (encapsulated) transformer. The typical primary and secondary turn ratio is 1:1. It has a long 10 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The typical product's weight is 0.1 oz (2.85 g). The product star magnetics™, is a highly preferred choice for users. The product is designated with the ear99 code number.

Pulse Larson REACH(Environmental Information)

Ink to Laser Marking 03/Jul/2018(PCN Design/Specification)

Thermoplastic Header Design 28/Jun/2013(PCN Design/Specification)

Halo Injunction Res 1/Sep/2015(PCN Other)

Packages FNL vs. NL(Other Related Documents)

HX2260NL Drawing(Product Drawings)
