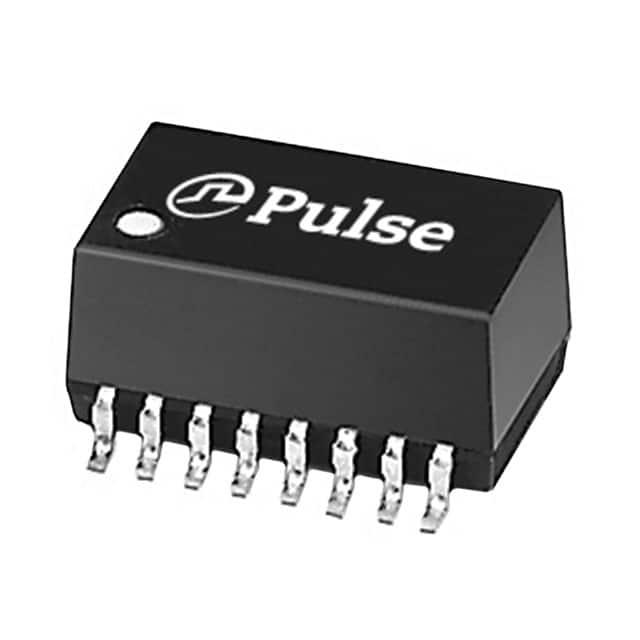

Pulse Electronics Network 23Z356SMQNL

23Z356SMQNL Pulse Electronics Network
Pulse Electronics Network

Product Information

HTSUS:
8504.31.2000
RoHS Status:
RoHS Compliant
Operating Temperature:
0°C ~ 70°C
Height - Seated (Max):
0.215" (5.46mm)
Inductance:
200µH
Package:
Tube
ET (Volt-Time):
-
Size / Dimension:
0.450" L x 0.265" W (11.43mm x 6.73mm)
Transformer Type:
Isolation and Data Interface (Encapsulated)
Turns Ratio - Primary:Secondary:
1CT:1.414CT Transmitter, 1CT:1CT Receiver
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Weight:
0.03 oz (0.85 g)
Series:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Pulse Electronics Network. The manufacturer part number is 23Z356SMQNL. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs compliant. The product has 0°c ~ 70°c operating temperature range. It has the maximum seated height of 0.215" (5.46mm). The product has a 200µh inductance value. It is shipped in tube package . The product's diameters include 0.450" l x 0.265" w (11.43mm x 6.73mm). It is a isolation and data interface (encapsulated) transformer. The typical primary and secondary turn ratio is 1ct:1.414ct transmitter, 1ct:1ct receiver. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. The typical product's weight is 0.03 oz (0.85 g). The product is designated with the ear99 code number.
