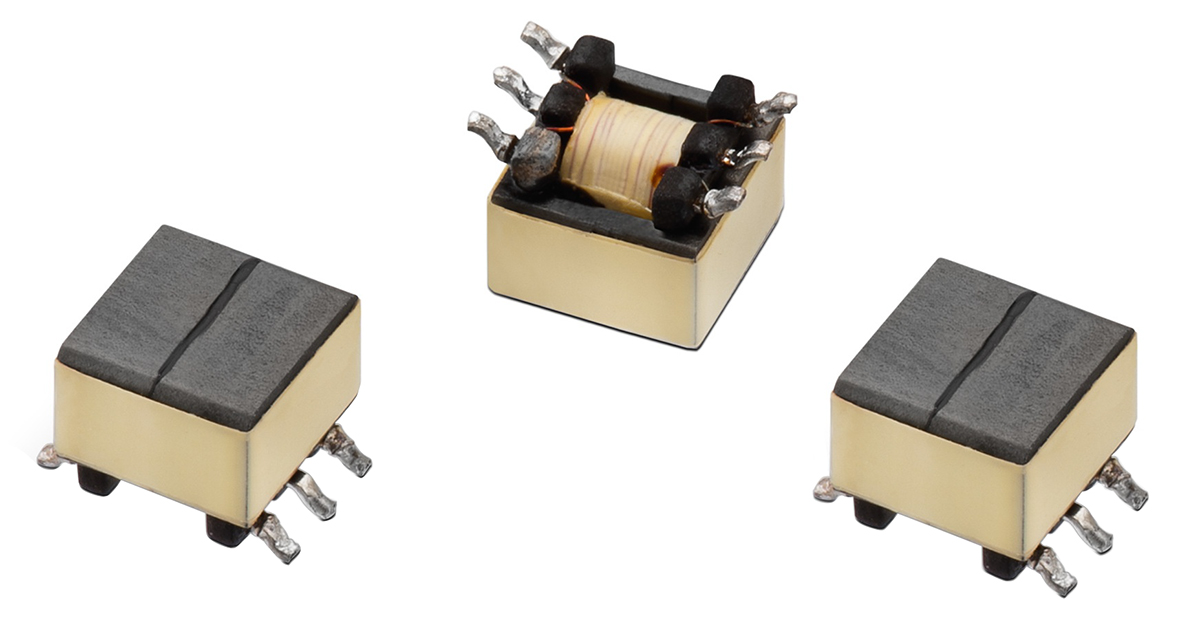

1 Output Signal & Power Gate Drive Transformer, 80V dc, 370μH

760301106 1 Output Signal & Power Gate Drive Transformer, 80V dc, 370μH
Wurth Elektronik

Product Information

Primary DC Resistance:
520mΩ
Isolation Voltage:
1500 (Test)V
Dimensions:
7 x 7 x 6mm
Mounting Type:
Surface Mount
Maximum Temperature:
+125°C
Leakage Inductance:
1.8µH
Minimum Temperature:
-40°C
Length:
7mm
Maximum Operating Frequency:
100kHz
Width:
7mm
Depth:
6mm
Construction:
Enclosed
Minimum Operating Frequency:
10kHz
Turns Ratio:
1:1
Primary Voltage Rating:
80V dc
Termination Type:
Solder
Secondary DC Resistance:
640mΩ
Standards Met:
IPC/JEDEC J-STD-020D
RoHs Compliant
Checking for live stock

This is 1 Output Signal & Power Gate Drive Transformer 80V dc 370μH manufactured by Wurth Elektronik. The manufacturer part number is 760301106. Additionally, it has 520mω primary DC resistance . It has 1500 (test)v isolation voltage. The given dimensions of the product include 7 x 7 x 6mm. The product is available in surface mount configuration. The product has +125°c maximum temperature. It has about 1.8µh leakage inductance . While its minimum temperature is -40°c. Its accurate length is 7mm. It carries 100khz of maximum operating frequency. Furthermore, the product is 7mm wide. The product comes in 6mm depth. The product has been well-designed with enclosed construction. It has a minimum 10khz operating frequency . It has 1:1 turns ratio . It has about 80v dc primary voltage rating . The product is designed with a solder termination. It has about 640mω secondary DC resistance . The product complies with all safety standards, such as ipc/jedec j-std-020d.
