Name: SM-LP-5001, Bourns
Brand: Bourns
SKU: ET13859210
Price: 1.02 GBP
Availability: InStock

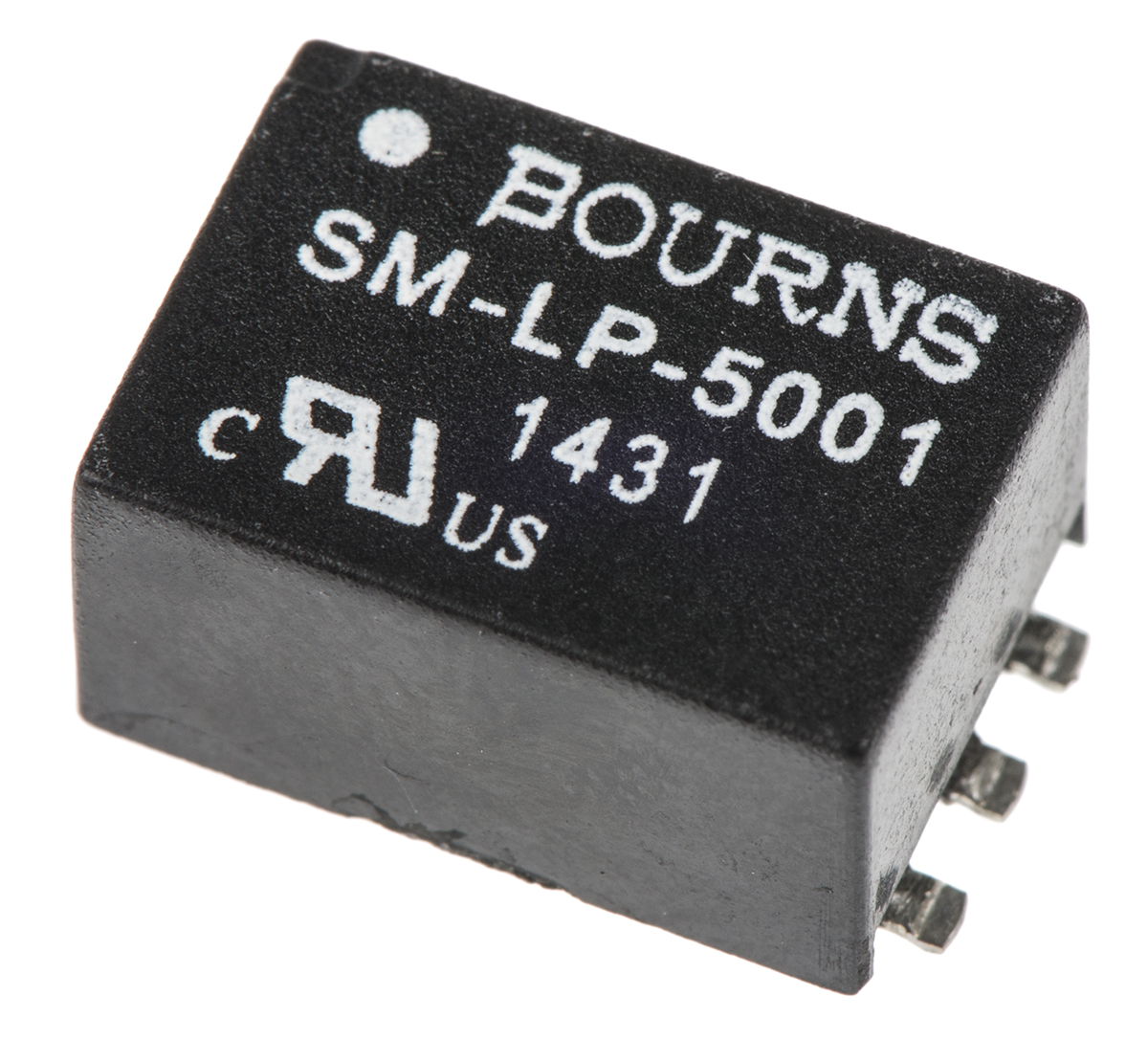

SM-LP-5001 1:1 Surface Mount Telecom Transformer, 3.8h, 115Ω

(0)

Product Information

Maximum Temperature:

+85°C

Dimensions:

9.6 x 7.36 x 14mm

Mounting Type:

Surface Mount

Leakage Inductance:

6mH

Minimum Temperature:

-20°C

Length:

9.6mm

Maximum Operating Frequency:

4kHz

Width:

7.36mm

Depth:

14mm

Minimum Operating Frequency:

0.2kHz

Turns Ratio:

1:1

Primary Inductance:

3.8H

Checking for live stock

This is 1:1 Surface Mount Telecom Transformer 3.8h 115Ω manufactured by Bourns. The manufacturer part number is SM-LP-5001. The product has +85°c maximum temperature. The given dimensions of the product include 9.6 x 7.36 x 14mm. The product is available in surface mount configuration. It has about 6mh leakage inductance . While its minimum temperature is -20°c. Its accurate length is 9.6mm. It carries 4khz of maximum operating frequency. Furthermore, the product is 7.36mm wide. The product comes in 14mm depth. It has a minimum 0.2khz operating frequency . It has 1:1 turns ratio . Additionally, it has 3.8h primary inductance . Allows 2db of insertion loss.

SM-LP-5001 Series -Surface Mount Line Matching Transformers Data Sheet(Technical Reference)

Certificate of RoHS Compliant SM-LP-5001 and SM-LP-5002 Transformers(Technical Reference)
