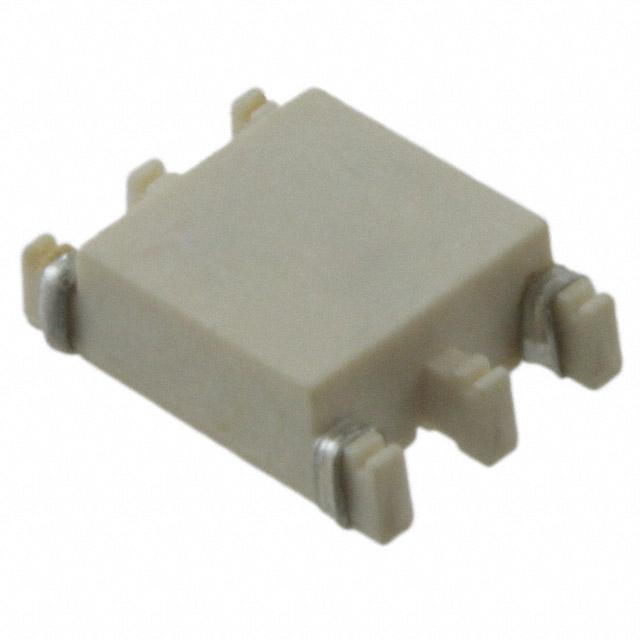

TT Electronics/BI Magnetics HM42-20001LFTR

Enrgtech Part No: ET11821484
|
Manufacturer Part No:
HM42-20001LFTR
|
Manufacturer: TT Electronics/BI Magnetics

Product Information

Size / Dimension:

0.276" L x 0.350" W (7.00mm x 8.90mm)

Detailed Description:

695µH Gate Drive Pulse Transformer 1:1 Surface Mount

Transformer Type:

Gate Drive

Height - Seated (Max):

0.118" (3.00mm)

Mounting Type:

Surface Mount

Series:

HM42

Turns Ratio - Primary:Secondary:

1:1

ET (Volt-Time):

29.3VµS

Packaging:

Cut Tape (CT)

Operating Temperature:

-40°C ~ 125°C

Customer Reference:

Inductance:

695µH

Checking for live stock

This is manufactured by TT Electronics/BI Magnetics. The manufacturer part number is HM42-20001LFTR. The product's diameters include 0.276" l x 0.350" w (7.00mm x 8.90mm). It features 695µh gate drive pulse transformer 1:1 surface mount. It is a gate drive transformer. It has the maximum seated height of 0.118" (3.00mm). The product is available in surface mount configuration. The product hm42, is a highly preferred choice for users. The typical primary and secondary turn ratio is 1:1. Features 29.3vµs ET volt time. In addition, cut tape (ct) is the available packaging type of the product. The product has -40°c ~ 125°c operating temperature range. The product has a 695µh inductance value. The tt electronics/bi magnetics's product offers user-desired applications.
