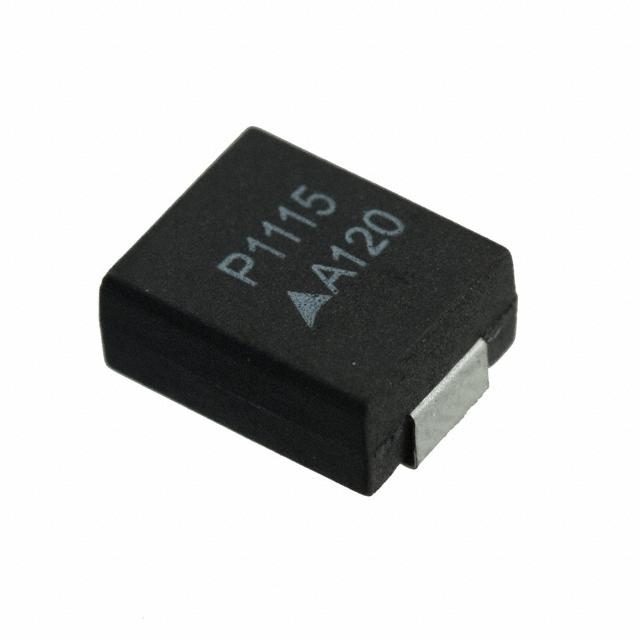

EPCOS - TDK Electronics B59115P1120A062

B59115P1120A062 EPCOS - TDK Electronics
EPCOS - TDK Electronics

Product Information

Ratings:
AEC-Q200
HTSUS:
8533.40.8070
RoHS Status:
ROHS3 Compliant
Resistance - 25°C (Typ):
55 Ohms
Operating Temperature:
-40°C ~ 60°C
Approval Agency:
-
Package / Case:
3225 (8063 Metric)
Type:
Ceramic
Current - Hold (Ih) (Max):
70 mA
Current - Max:
700 mA
Height - Seated (Max):
-
REACH Status:
REACH Unaffected
edacadModel:
B59115P1120A062 Models
edacadModelUrl:
/en/models/2651639
Thickness (Max):
0.150" (3.80mm)
Package:
Tape & Reel (TR)
Size / Dimension:
0.315" L x 0.248" W (8.00mm x 6.30mm)
standardLeadTime:
21 Weeks
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Voltage - Max:
80V
Series:
Automotive, AEC-Q200, B59115
Lead Spacing:
-
Current - Trip (It):
145 mA
ECCN:
EAR99
Checking for live stock

This is manufactured by EPCOS - TDK Electronics. The manufacturer part number is B59115P1120A062. It is rated with aec-q200. It is assigned with possible HTSUS value of 8533.40.8070. The product is rohs3 compliant. While the typical resistance of 55 ohms at 25°C. The product has -40°c ~ 60°c operating temperature range. Moreover, the product comes in 3225 (8063 metric). It comes in ceramic configuration. The maximum hold current is 70 ma. The given maximum current is 700 ma. In addition, it is reach unaffected. The product has a maximum thickness of 0.150" (3.80mm). It is shipped in tape & reel (tr) package . The product's diameters include 0.315" l x 0.248" w (8.00mm x 6.30mm). It has a long 21 weeks standard lead time. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. It has a maximum voltage of 80v. The product automotive, aec-q200, b59115, is a highly preferred choice for users. The trip current of the product is 145 ma. The product is designated with the ear99 code number.

pdf icon
TDK Electronics RoHS & REACH(Environmental Information)
pdf icon
Inspection Transfer 10/Nov/2017(PCN Assembly/Origin)
pdf icon
PTC Thermistors Material and Dimensions 22/Jan/2016(PCN Design/Specification)
pdf icon
PTC Taping and Packing Numbering(Datasheets)
pdf icon
B59115,215,315 Series Datasheet(Datasheets)
