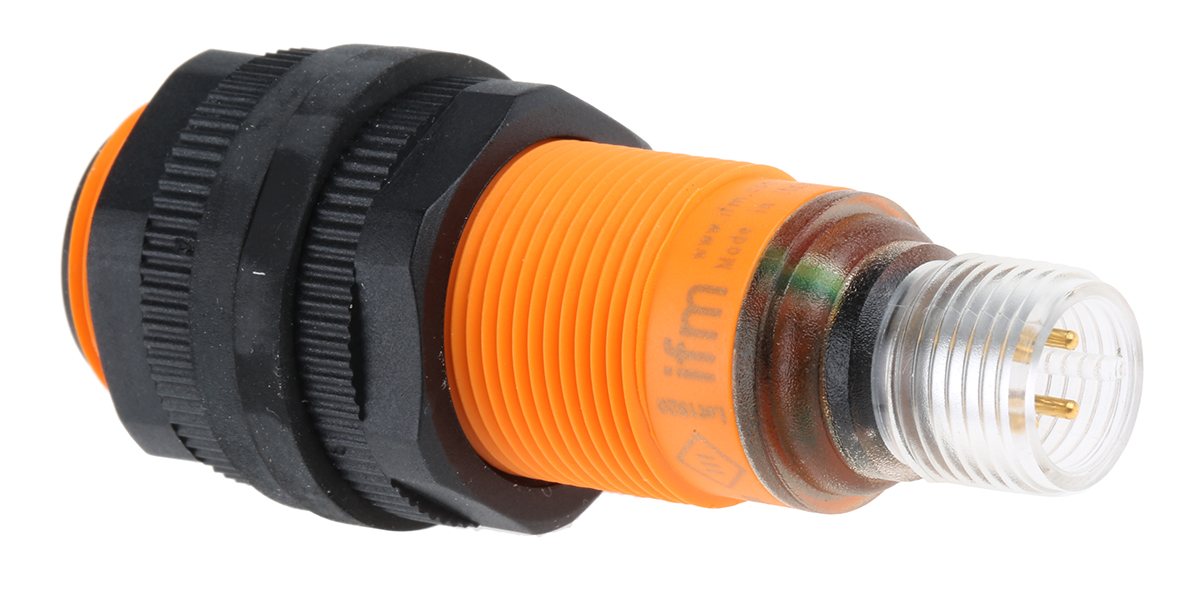

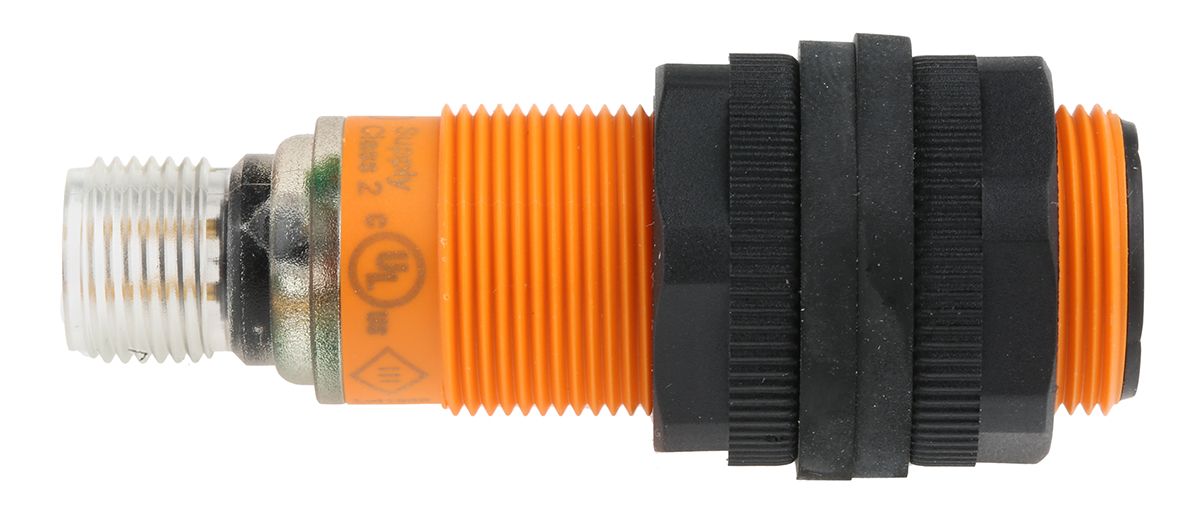

ifm electronic Ultrasonic Sensor Barrel M18 x 1, Maximum of 300 mm, PNP NO/NC, 4-Pin M12 Connector IP67

UGT200 ifm electronic Ultrasonic Sensor Barrel M18 x 1, Maximum of 300 mm, PNP NO/NC, 4-Pin M12 Connector IP67
UGT200
UGT200
ifm electronic

Product Information

Output Function:
NO/NC
Switching Frequency:
8 Hz
Housing Material:
Epoxy Glass Ceramic, PBT, Polyamide
Supply Voltage:
10 → 30 V dc
Standards Met:
CE, cULus, cULus Recognised, EN 55011, EN 60068-2-27, EN 60068-2-6, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, UL
Maximum Switching Frequency:
8Hz
Reverse Polarity Protection:
Yes
Detection Range:
300 mm
Body Style:
Threaded Barrel
Maximum Operating Temperature:
+70°C
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1232439&DisplayLogo=False
IP Rating:
IP67
Switching Current:
35 mA
Digital Switching Output Type:
PNP
Length:
60.5mm
Maximum DC Voltage:
30V
Thread Size:
M18
Short Circuit Overload Protection:
Yes
Sensor Technology:
Ultrasonic
Minimum Operating Temperature:
-20°C
Connection Type:
M12
RoHs Compliant
Checking for live stock

This is Ultrasonic Sensor Barrel M18 x 1 Maximum of 300 mm PNP NO/NC 4-Pin M12 Connector IP67 manufactured by ifm electronic. The manufacturer part number is UGT200. The no/nc is the output function of the product. It exhibits a typical 8 hz switching frequency . The product also features robust epoxy glass ceramic, pbt, polyamide housing material. Features 10 → 30 v dc supply voltage. The product complies with all safety standards, such as ce, culus, culus recognised, en 55011, en 60068-2-27, en 60068-2-6, en 61000-4-2, en 61000-4-3, en 61000-4-4, en 61000-4-6, ul. It has a maximum 8hz switching frequency. Reverse Polarity Protection Options - yes. The product has 300 mm of detection range. It has a threaded barrel body style. It has a maximum operating temperature of +70°c. It is IP rated with ip67. It is integrated with 35 ma switching current. Its accurate length is 60.5mm. It has 30v maximum DC voltage. It has a typical thread size of m18. Short Circuit Overload Protection Options - yes. The sensor utilises ultrasonic, a standard technology in sensor markets. Whereas, the minimum operating temperature of the product is -20°c. It allows m12 connection type.

pdf icon
Datasheet(Technical Reference)
pdf icon
UGT200 Series(Technical Reference)
pdf icon
Operating Instructions(Technical Reference)
