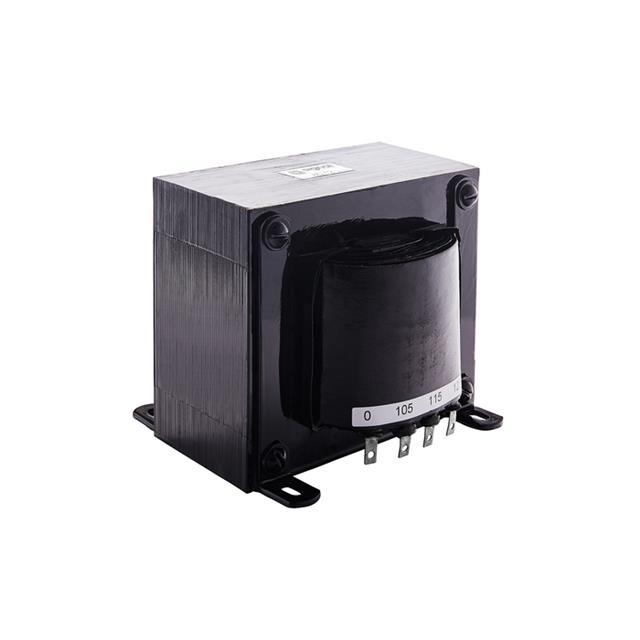

Signal Transformer 80-25

Enrgtech Part No: ET10584455
|
Manufacturer Part No:
80-25
|
Manufacturer: Signal Transformer

Product Information

Secondary Winding(s):

Dual

HTSUS:

8504.32.0000

RoHS Status:

ROHS3 Compliant

Termination Style:

Solder, Quick Connect

Current - Output (Max):

Parallel 50A, Series 25A

Voltage - Primary:

115V, 230V

Height - Seated (Max):

158.80mm

Type:

Laminated Core

Primary Winding(s):

Dual

REACH Status:

REACH Unaffected

Center Tap:

Yes

Voltage - Secondary (Full Load):

Parallel 40V, Series 80V

Checking for live stock

This is manufactured by Signal Transformer. The manufacturer part number is 80-25. As well as [Secondary Wing(s)]. It is assigned with possible HTSUS value of 8504.32.0000. The product is rohs3 compliant. Moreover, it has solder, quick connect terminal style. The maximum product's output current is parallel 50a, series 25a. Features primary voltage 115v, 230v. It has the maximum seated height of 158.80mm. It comes in laminated core configuration. Features dual. In addition, it is reach unaffected. Center Tap - yes. Full load voltage - secondary includes parallel 40v, series 80v. It is shipped in box package . The product's diameters include 190.50mm l x 165.10mm w. It has a long 18 weeks standard lead time. 1500vrms of isolation voltage. Its typical moisture sensitivity level is not applicable. The product is available in chassis mount configuration. The typical product's weight is 41 lbs (18.6 kg). The maximum power of the product is 2000va. The product is designated with the ear99 code number.

Power Xfrmr, Hi Freq Magnetics Catalog(Datasheets)

DL Series Datasheet(Datasheets)

Tape Color 20/Jan/2018(PCN Design/Specification)

Signal Transformer REACH(Environmental Information)

RoHS EU Declaration Signal Transformer(Environmental Information)
