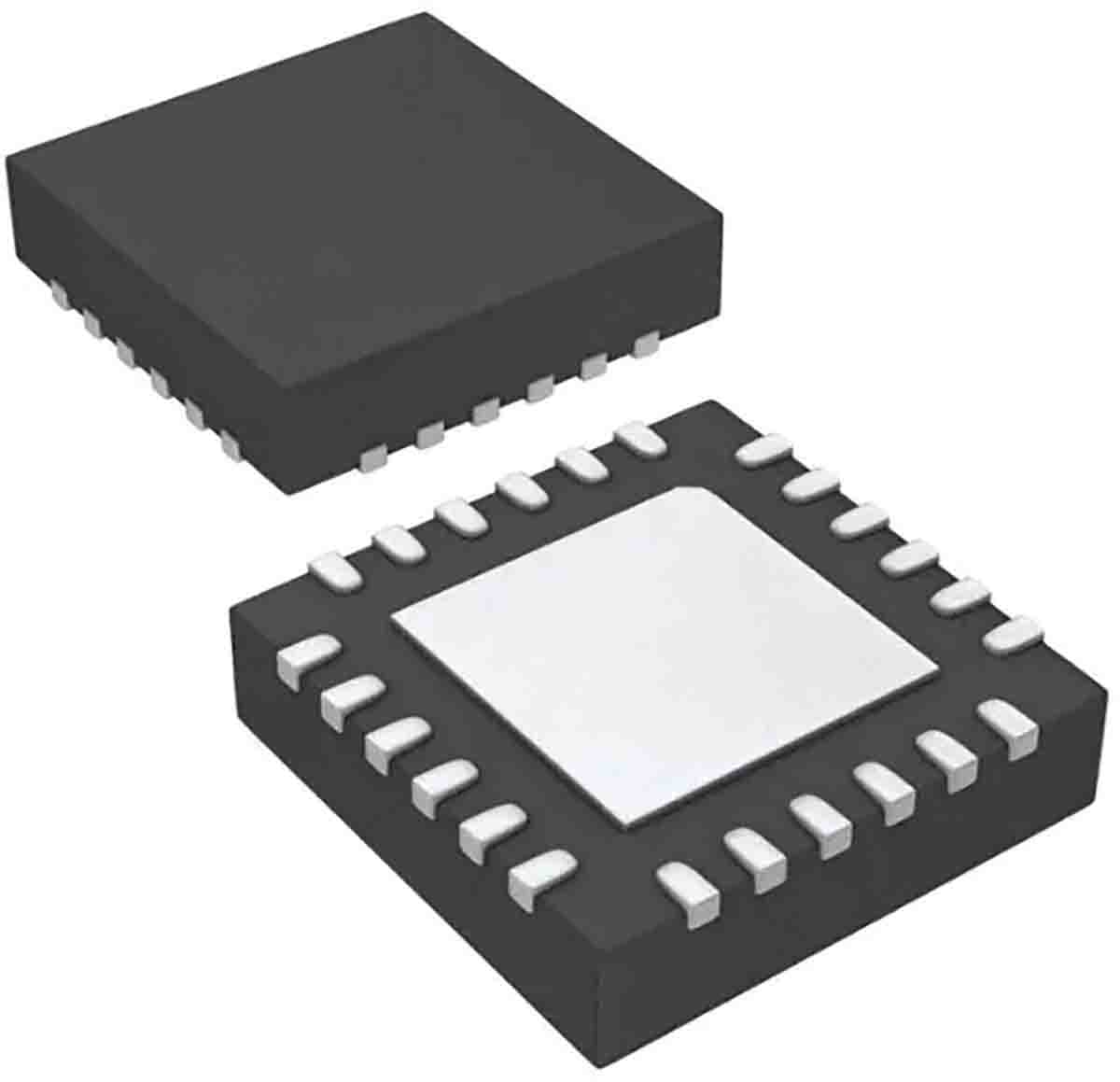

Infineon S6AE103A0DGN1B200, DualLow Side, Low side Power Switch IC 24-Pin, QFN

S6AE103A0DGN1B200 Infineon , DualLow Side, Low side Power Switch IC 24-Pin, QFN
Infineon

Product Information

Maximum Operating Current:
0.01A
Power Switch Type:
Low side
Dimensions:
4 x 4 x 0.85mm
Mounting Type:
Surface Mount
Minimum Operating Temperature:
-40 °C
Package Type:
QFN
Power Switch Topology:
Low Side
Switch On Resistance:
1500mΩ
Number of Channels:
2
Maximum Operating Temperature:
+85 °C
Pin Count:
24
Maximum Operating Supply Voltage:
5.5 V
RoHs Compliant
Checking for live stock

This is DualLow Side Low side Power Switch IC 24-Pin QFN manufactured by Infineon. The manufacturer part number is S6AE103A0DGN1B200. Moreover, the product needs a maximum 0.01a operating current . Its power switch is of low side type . The given dimensions of the product include 4 x 4 x 0.85mm. The product is available in surface mount configuration. Whereas, the minimum operating temperature of the product is -40 °c. The package is a sort of qfn. It has a low side power switch topology . In addition, it has about 1500mω switch on resistance . It is supplied with 2 channels. It has a maximum operating temperature of +85 °c. It contains 24 pins. It has 5.5 v maximum operating supply voltage.

pdf icon
Datasheet S6AE103A0DGN1B200(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search S6AE103A0DGN1B200 on website for other similar products.
We accept all major payment methods for all products including ET24122159. Please check your shopping cart at the time of order.
You can order Infineon brand products with S6AE103A0DGN1B200 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Switch ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon S6AE103A0DGN1B200, DualLow Side, Low side Power Switch IC 24-Pin, QFN. You can also check on our website or by contacting our customer support team for further order details on Infineon S6AE103A0DGN1B200, DualLow Side, Low side Power Switch IC 24-Pin, QFN.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24122159 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24122159.
Yes. We ship S6AE103A0DGN1B200 Internationally to many countries around the world.
