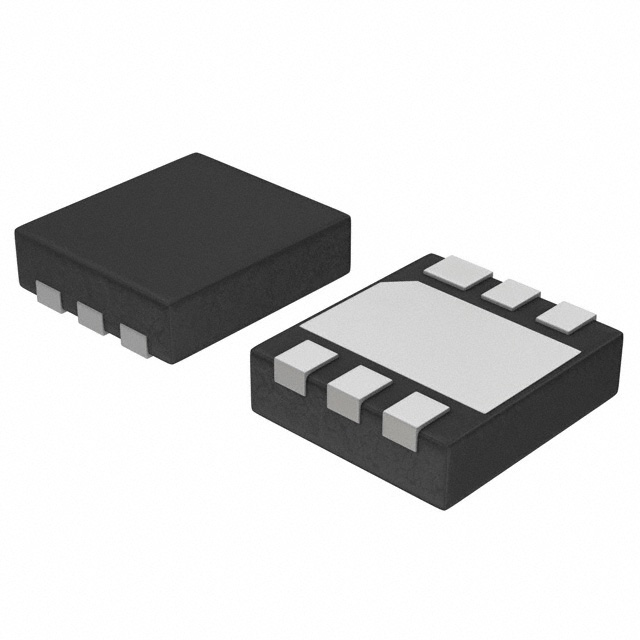

onsemi NCP380LMUAJAATBG

NCP380LMUAJAATBG onsemi
NCP380LMUAJAATBG
onsemi

Product Information

Number of Outputs:
1
Number of Inputs:
1
Mounting Type:
Surface Mount
Maximum Operating Current:
2.1A
Automotive Standard:
AEC-Q100
Package Type:
UDFN
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
5.5 V
Maximum Operating Temperature:
+125 °C
Pin Count:
6
Dimensions:
2 x 2 x 0.5mm
HTSUS:
8542.39.0060
RoHS Status:
ROHS3 Compliant
Supplier Device Package:
6-UDFN (2x2)
Operating Temperature:
-40°C ~ 85°C (TA)
Current - Output (Max):
Adjustable
Input Type:
Non-Inverting
Package / Case:
6-UDFN Exposed Pad
Voltage - Supply (Vcc/Vdd):
Not Required
title:
NCP380LMUAJAATBG
REACH Status:
REACH Unaffected
Output Type:
P-Channel
edacadModel:
NCP380LMUAJAATBG Models
edacadModelUrl:
/en/models/2651947
Ratio - Input:Output:
1:1
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Interface:
On/Off
standardLeadTime:
34 Weeks
Features:
Enable Input Low, Slew Rate Controlled, Status Flag
Mounting Type:
Surface Mount
Series:
-
Voltage - Load:
2.5V ~ 5.5V
Fault Protection:
Current Limiting (Adjustable), UVLO
Packaging:
Tape & Reel (TR)
Base Product Number:
NCP380
Rds On (Typ):
55mOhm
Output Configuration:
High Side
ECCN:
EAR99
Number of Outputs:
1
Switch Type:
General Purpose
RoHs Compliant
Checking for live stock

This is manufactured by onsemi. The manufacturer part number is NCP380LMUAJAATBG. Additionally, the product is supplied with 1 outputs. The product consists of 1 inputs. The product is available in surface mount configuration. Moreover, the product needs a maximum 2.1a operating current . The product complies with automotive standard - aec-q100. The package is a sort of udfn. Whereas, the minimum operating temperature of the product is -40 °c. It has 5.5 v maximum operating supply voltage. It has a maximum operating temperature of +125 °c. It contains 6 pins. The given dimensions of the product include 2 x 2 x 0.5mm. It is assigned with possible HTSUS value of 8542.39.0060. The product is rohs3 compliant. 6-udfn (2x2) is the supplier device package value. The product has -40°c ~ 85°c (ta) operating temperature range. The maximum product's output current is adjustable. It carries non-inverting input type. Moreover, the product comes in 6-udfn exposed pad. The supply voltage of a bespoke product includes not required. In addition, it is reach unaffected. Furthermore, it has ap-channel output. The ratio between its input and output is 1:1. Its typical moisture sensitivity level is 1 (unlimited). A bespoke product is on/off interface. It has a long 34 weeks standard lead time. The splendid features of the product include enable input low, slew rate controlled, status flag. The given load voltage is 2.5v ~ 5.5v. Fault protection features include current limiting (adjustable), uvlo. In addition, tape & reel (tr) is the available packaging type of the product. Moreover, it corresponds to ncp380, a base product number of the product. The typical Rds On of the product is 55mohm. It boasts high side output configuration. The product is designated with the ear99 code number. Quality product with a general purpose switch type.

pdf icon
Datasheet NCP380LMUAJAATBG(Technical Reference)
pdf icon
onsemi RoHS(Environmental Information)
pdf icon
onsemi REACH(Environmental Information)
pdf icon
Wafer Fab Change 15/Feb/2023(PCN Assembly/Origin)
pdf icon
NCP/NCV380(Datasheets)
pdf icon
Covering Tape/Material Chg 20/May/2016(PCN Packaging)
