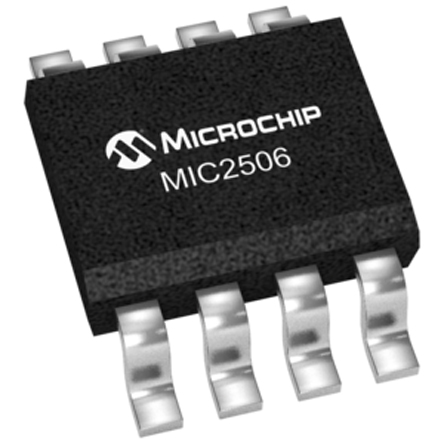

Microchip MIC2506YM, Quad Power Distribution Switch High Side, 75mΩ, 2.7 V min. 8-Pin, SOIC

MIC2506YM Microchip , Quad Power Distribution Switch High Side, 75mΩ, 2.7 V min. 8-Pin, SOIC
Microchip

Product Information

Number of Outputs:
4
Power Switch Type:
USB Power
Dimensions:
4.93 x 3.94 x 1.48mm
Mounting Type:
Surface Mount
Maximum Operating Current:
2A
Minimum Operating Temperature:
-40 °C
Package Type:
SOIC
Power Switch Topology:
High Side
Switch On Resistance:
75mΩ
Maximum Operating Supply Voltage:
7.5 V
Maximum Operating Temperature:
+85 °C
Pin Count:
8
RoHs Compliant
Checking for live stock

This is Quad Power Distribution Switch High Side 75mΩ 2.7 V min. 8-Pin SOIC manufactured by Microchip. The manufacturer part number is MIC2506YM. Additionally, the product is supplied with 4 outputs. Its power switch is of usb power type . The given dimensions of the product include 4.93 x 3.94 x 1.48mm. The product is available in surface mount configuration. Moreover, the product needs a maximum 2a operating current . Whereas, the minimum operating temperature of the product is -40 °c. The package is a sort of soic. It has a high side power switch topology . In addition, it has about 75mω switch on resistance . It has 7.5 v maximum operating supply voltage. It has a maximum operating temperature of +85 °c. It contains 8 pins.

pdf icon
MIC2505/2506 Single 2A/Dual 1A/High Side Switches Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
