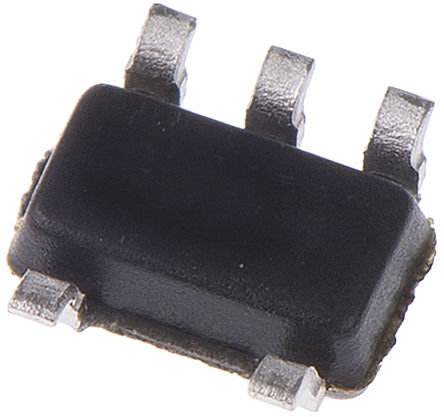

DiodesZetex AP22814BW5-7, USB Power Switch, High Side, 65mΩ, 1.6 V min. 5-Pin, SOT25

AP22814BW5-7 DiodesZetex , USB Power Switch, High Side, 65mΩ, 1.6 V min. 5-Pin, SOT25
AP22814BW5-7
DiodesZetex

Product Information

Number of Outputs:
1
Dimensions:
3.1 x 1.7 x 1.3mm
Mounting Type:
Surface Mount
Maximum Operating Current:
3.8A
Minimum Operating Temperature:
-40 °C
Package Type:
SOT25
Power Switch Topology:
High Side
Switch On Resistance:
65mΩ
Maximum Operating Supply Voltage:
2.4 V
Maximum Operating Temperature:
+85 °C
Pin Count:
5
RoHs Compliant
Checking for live stock

This is USB Power Switch High Side 65mΩ 1.6 V min. 5-Pin SOT25 manufactured by DiodesZetex. The manufacturer part number is AP22814BW5-7. Additionally, the product is supplied with 1 outputs. The given dimensions of the product include 3.1 x 1.7 x 1.3mm. The product is available in surface mount configuration. Moreover, the product needs a maximum 3.8a operating current . Whereas, the minimum operating temperature of the product is -40 °c. The package is a sort of sot25. It has a high side power switch topology . In addition, it has about 65mω switch on resistance . It has 2.4 v maximum operating supply voltage. It has a maximum operating temperature of +85 °c. It contains 5 pins.

pdf icon
AP22804 / AP22814, Single Channel Power Distribution Load Switch(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
