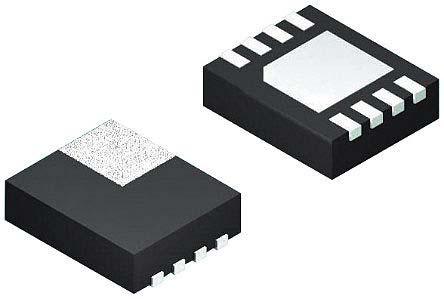

Analog Devices ADP198ACPZ-R7 Power Switch IC, High Side Switch 8-Pin, LFCSP

ADP198ACPZ-R7 Analog Devices Power Switch IC, High Side Switch 8-Pin, LFCSP
Analog Devices

Product Information

Maximum Operating Current:
1A
Power Switch Type:
High Side Switch
Dimensions:
2.1 x 2.1 x 0.55mm
Mounting Type:
Surface Mount
Series:
ADP198
Minimum Operating Temperature:
-40 °C
Package Type:
LFCSP
Power Switch Topology:
High Side
Switch On Resistance:
200mΩ
Number of Channels:
1
Maximum Operating Temperature:
+85 °C
Pin Count:
8
Maximum Operating Supply Voltage:
6.5 V
RoHs Compliant
Checking for live stock

This is Power Switch IC High Side Switch 8-Pin LFCSP manufactured by Analog Devices. The manufacturer part number is ADP198ACPZ-R7. Moreover, the product needs a maximum 1a operating current . Its power switch is of high side switch type . The given dimensions of the product include 2.1 x 2.1 x 0.55mm. The product is available in surface mount configuration. The product adp198, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -40 °c. The package is a sort of lfcsp. It has a high side power switch topology . In addition, it has about 200mω switch on resistance . It is supplied with 1 channels. It has a maximum operating temperature of +85 °c. It contains 8 pins. It has 6.5 v maximum operating supply voltage.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
