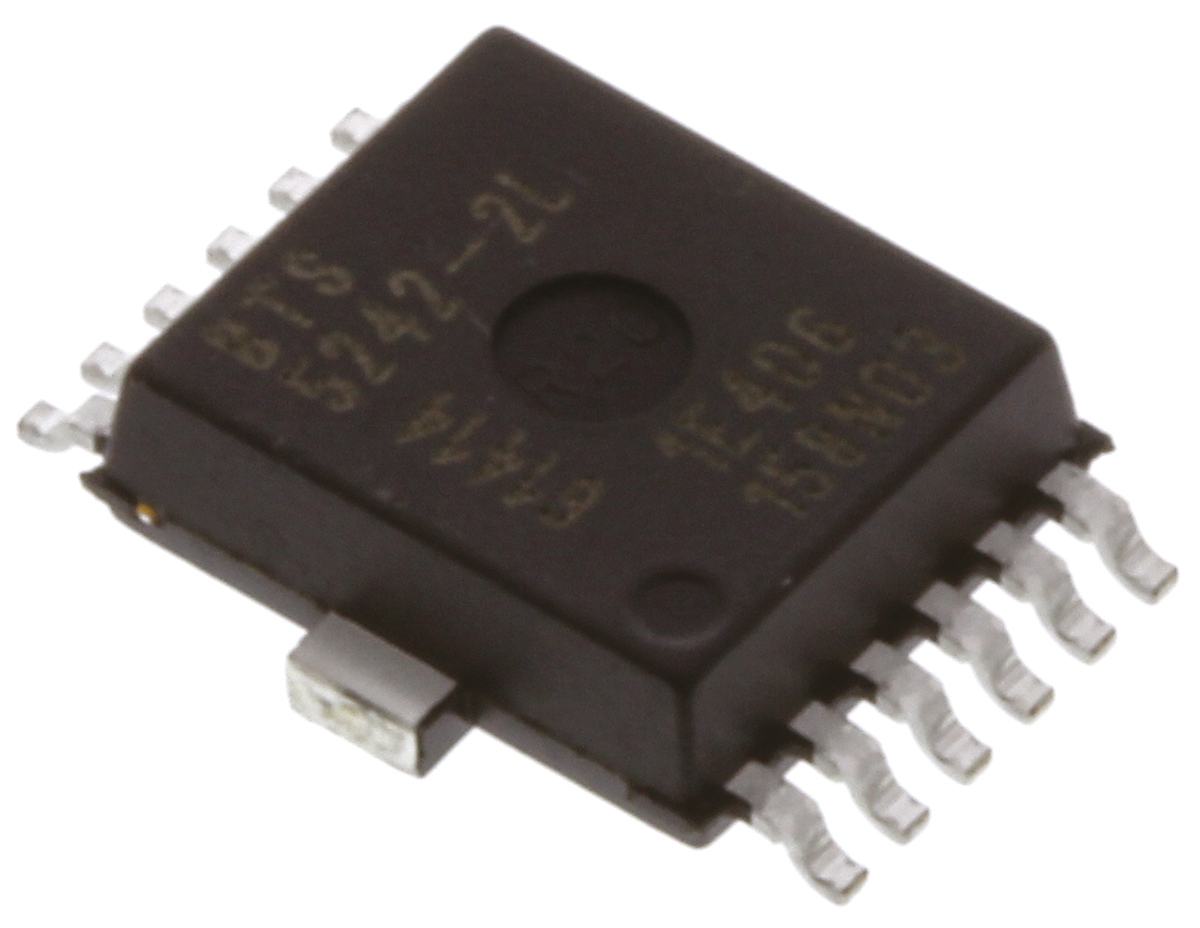

Infineon BTS5242-2L, Quad Intelligent Power Switch, High Side, 6A, 4.5 → 28V 12-Pin, SOIC

BTS5242-2L Infineon , Quad Intelligent Power Switch, High Side, 6A, 4.5 → 28V 12-Pin, SOIC
BTS5242-2L
Infineon

Product Information

Number of Outputs:
4
Power Switch Type:
High Side Switch
Dimensions:
6.4 x 7.5 x 2.35mm
Mounting Type:
Surface Mount
Maximum Operating Current:
6A
Minimum Operating Temperature:
-40 °C
Package Type:
SOIC
Power Switch Topology:
High Side
Switch On Resistance:
48mΩ
Maximum Operating Supply Voltage:
28 V
Maximum Operating Temperature:
+150 °C
Pin Count:
12
RoHs Compliant
Checking for live stock

This is Quad Intelligent Power Switch High Side 6A 4.5 → 28V 12-Pin SOIC manufactured by Infineon. The manufacturer part number is BTS5242-2L. Additionally, the product is supplied with 4 outputs. Its power switch is of high side switch type . The given dimensions of the product include 6.4 x 7.5 x 2.35mm. The product is available in surface mount configuration. Moreover, the product needs a maximum 6a operating current . Whereas, the minimum operating temperature of the product is -40 °c. The package is a sort of soic. It has a high side power switch topology . In addition, it has about 48mω switch on resistance . It has 28 v maximum operating supply voltage. It has a maximum operating temperature of +150 °c. It contains 12 pins.

pdf icon
BTS5242-2L, Smart High-Side Power Switch, PROFET®(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search BTS5242-2L on website for other similar products.
We accept all major payment methods for all products including ET13933031. Please check your shopping cart at the time of order.
You can order Infineon brand products with BTS5242-2L directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Power Switch ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon BTS5242-2L, Quad Intelligent Power Switch, High Side, 6A, 4.5 → 28V 12-Pin, SOIC. You can also check on our website or by contacting our customer support team for further order details on Infineon BTS5242-2L, Quad Intelligent Power Switch, High Side, 6A, 4.5 → 28V 12-Pin, SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13933031 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13933031.
Yes. We ship BTS5242-2L Internationally to many countries around the world.
