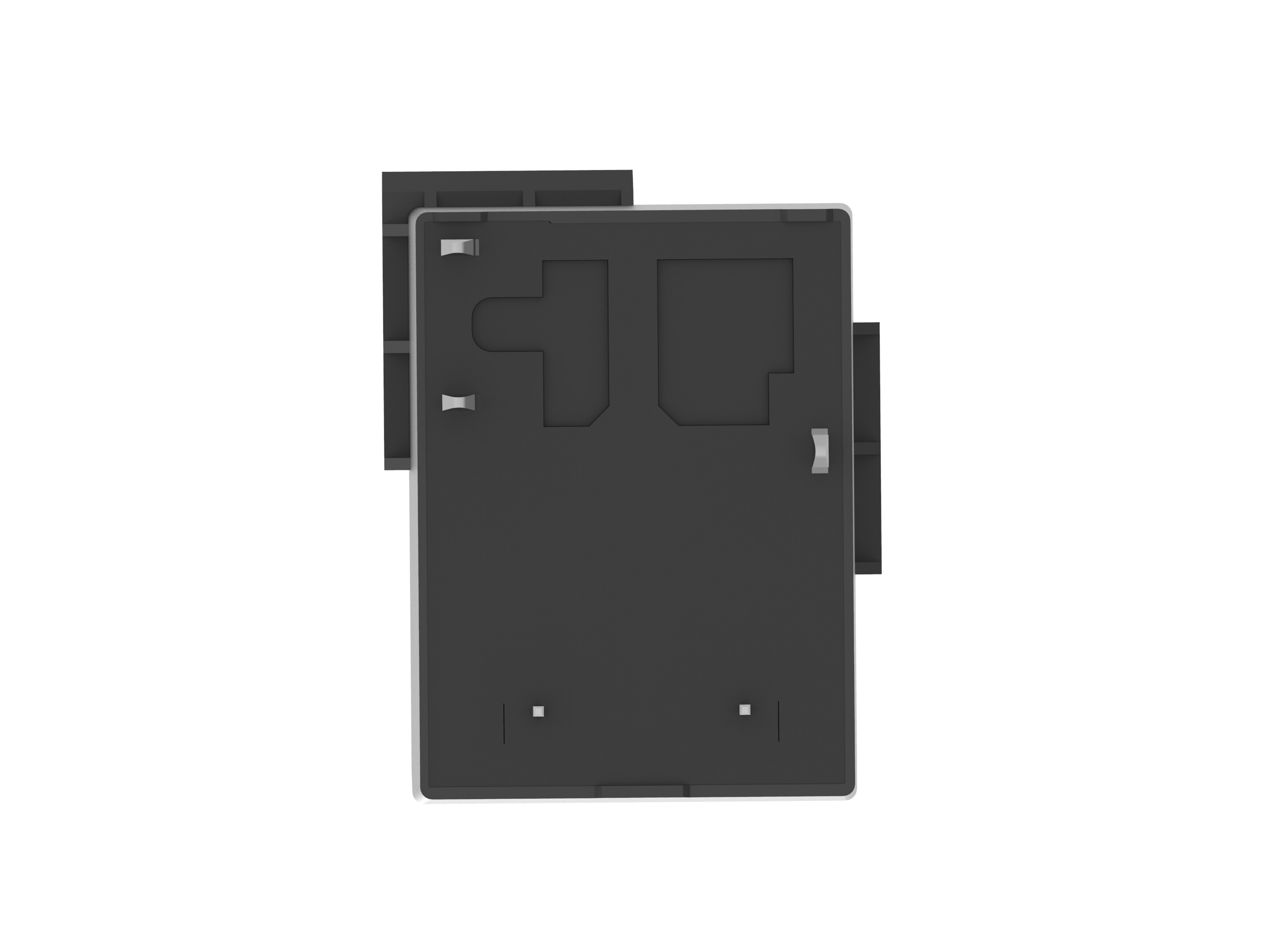

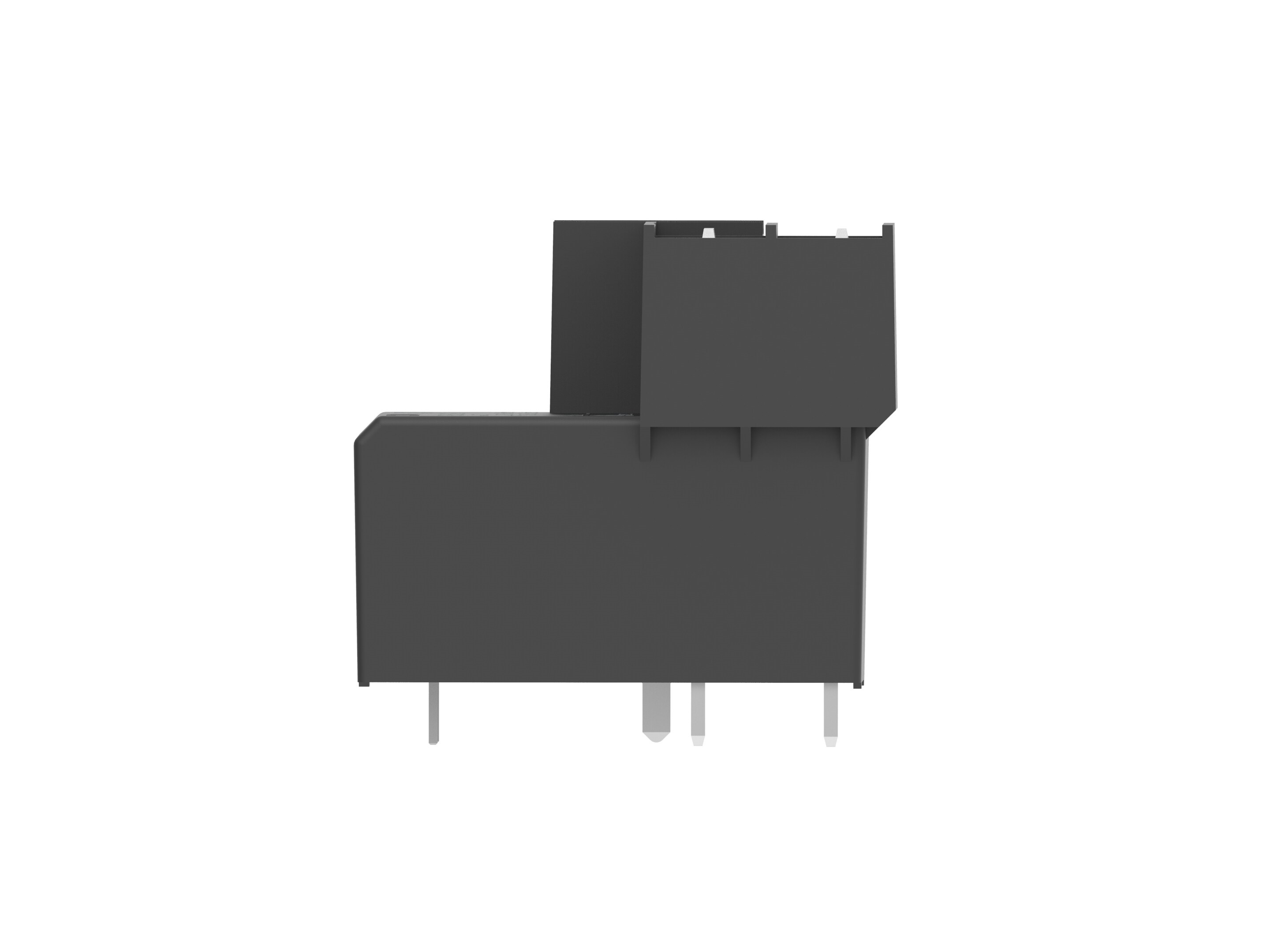

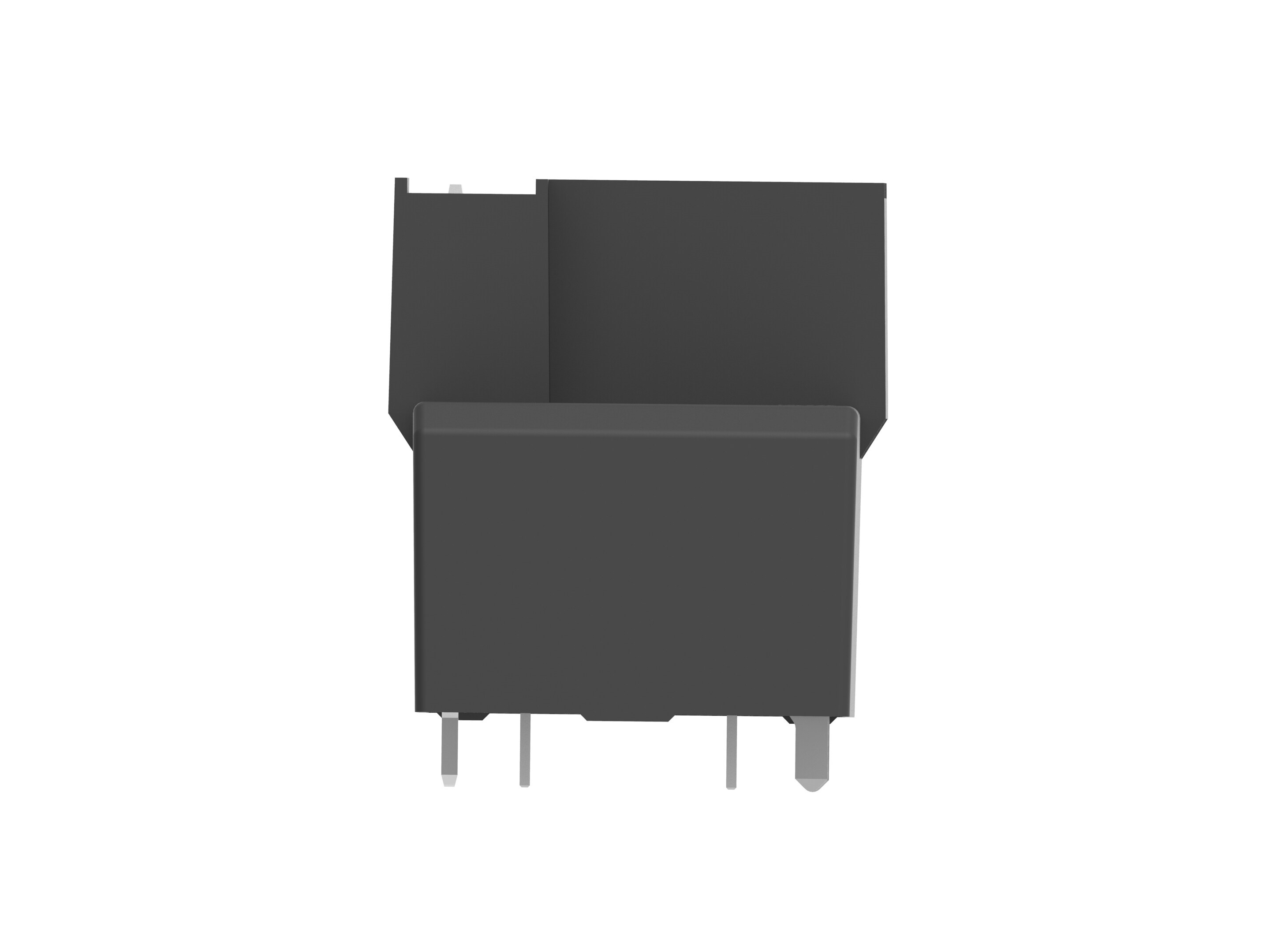

This is PCB Mount Power Relay 12V dc Coil 30A Switching Current SPST manufactured by TE Connectivity. The manufacturer part number is T9GS1L24-12 1558676-3. It has a maximum operating temperature of +105°c. The given dimensions of the product include 32 x 25 x 27mm. The product is available in pcb mount configuration. Robust coil power of 900mw. The product potter & brumfield t9g, is a highly preferred choice for users. It is integrated with 30a switching current. The coil voltage of the product is 12v dc. Its accurate length is 32mm. In addition, the height is 27mm. Furthermore, the product is 25mm wide. The product comes in 25mm depth. It has a maximum AC switching voltage of 480v ac. Whereas, the minimum operating temperature of the product is -40°c. The contact is equipped with spst configuration. The product is made from sturdy silver alloy materials. It has equipped with 1 poles. The terminal is a quick connect type. It holds up to 160 ω coil resistance.
For more information please check the datasheets.
