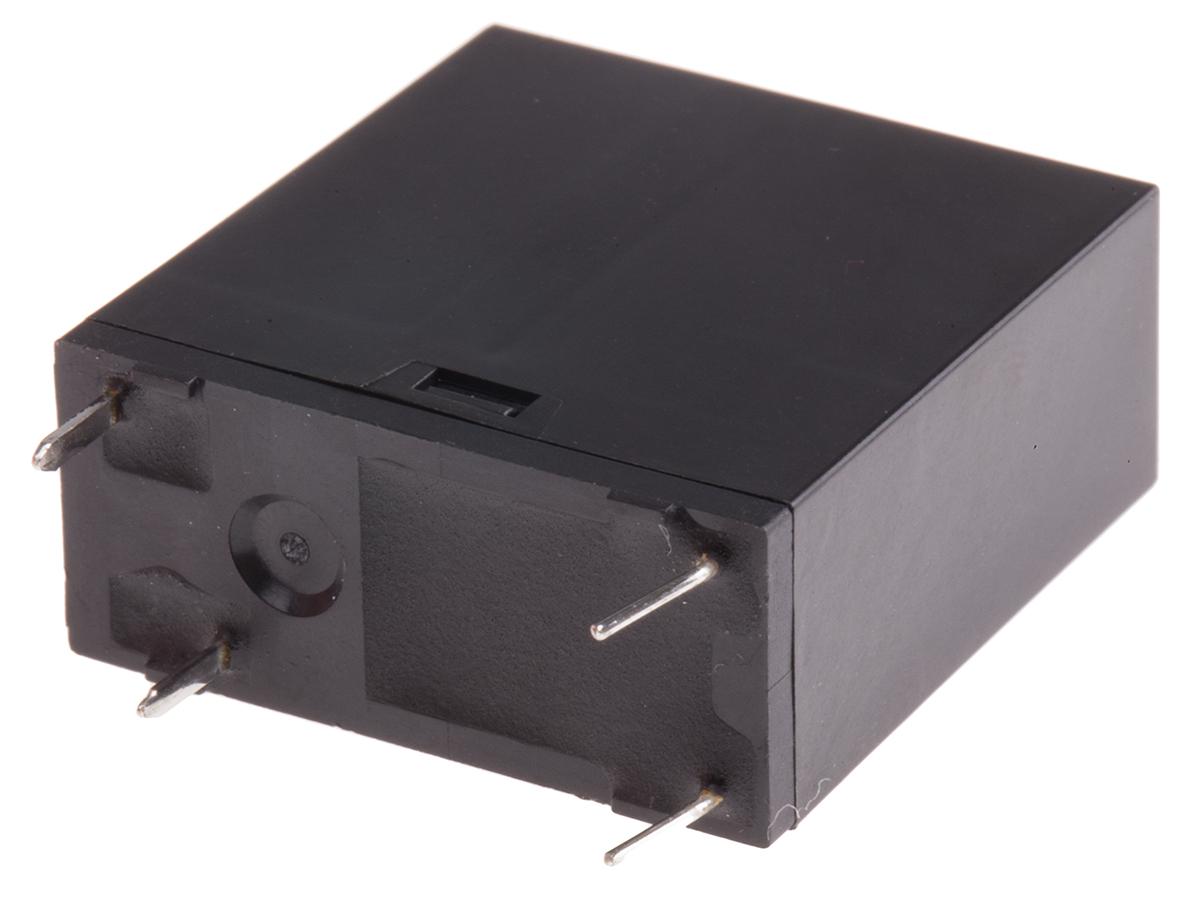

This is 12V dc Coil Non-Latching Relay SPNO 5A Switching Current PCB Mount LKP1AF12 manufactured by Panasonic. The manufacturer part number is LKP1AF-12V. The coil voltage of the product is 12v dc. Applications Information involves power. The terminal is a through hole type. It holds up to 272ω coil resistance. It is capable of doing 100000 (electrical) cycles, 2000000 (mechanical) cycles in a lifetime . Robust coil power of 530mw. While it carries 30v dc of maximum DC switching voltage. It bears a maximum 150 w of DC switching power. The product has 4kvrms isolation coil to contact. It has a maximum operating temperature of +70°c. It is integrated with 5a switching current. Latching Options - no. The contact is equipped with spst configuration. The product comes in 11mm depth. The product is available in pcb mount configuration. Its accurate length is 24mm. In addition, the height is 25mm. It has a maximum AC switching voltage of 277v ac. Whereas, the minimum operating temperature of the product is -40°c. It also features an AC switching power of 2.77 kva. It has equipped with 1 poles. The product is made from sturdy silver alloy materials.
For more information please check the datasheets.
